Hangzhou Dej hiav txwv kev lag luam Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm machined iav racks hauv Suav teb. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.

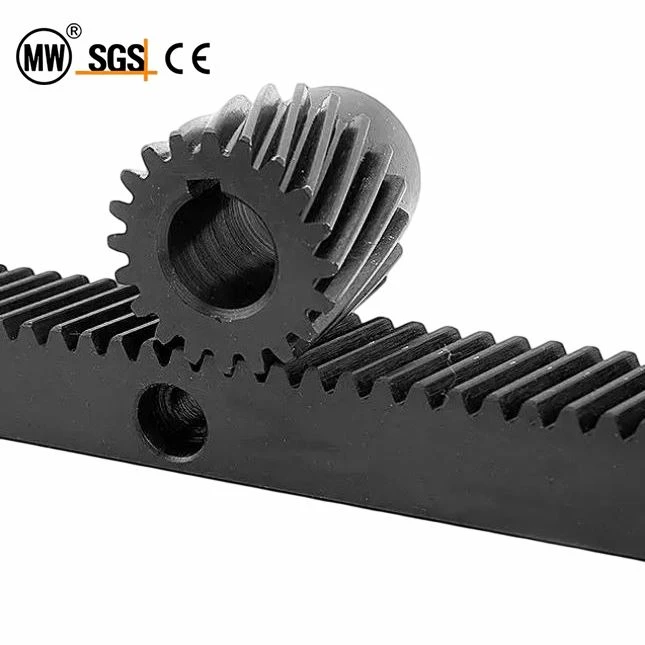

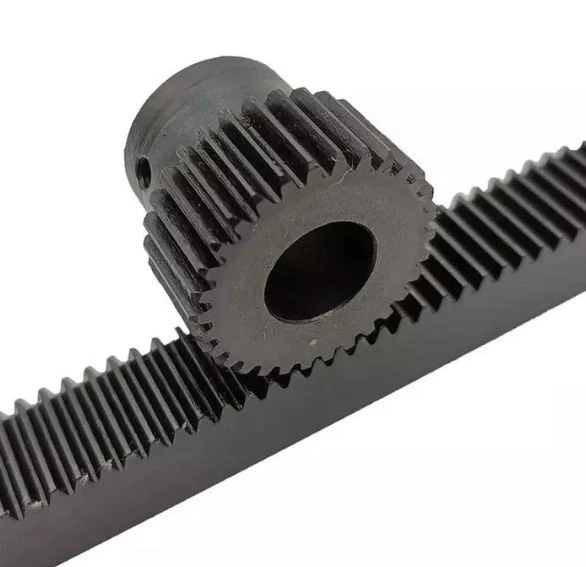

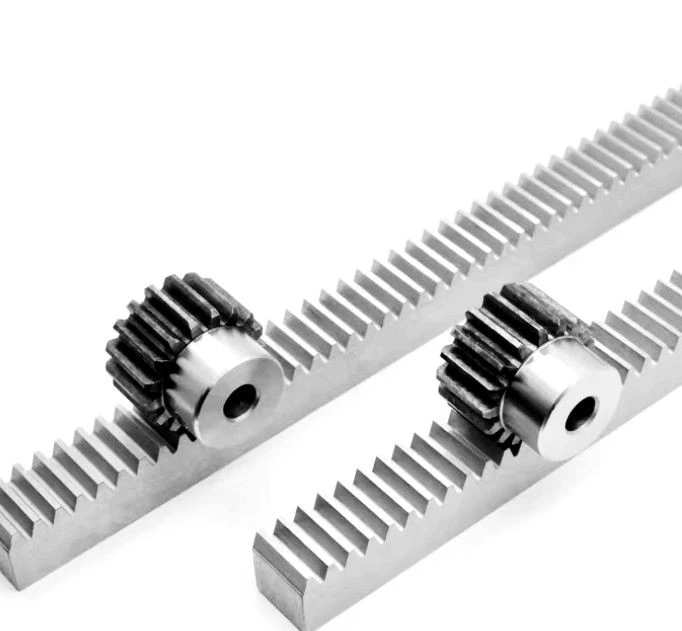

Mechanized Iav Racks yog siab -cov khoom siv iav khib nyiab siv dav siv hauv cov tshuab tshuab uas xav tau kev hloov pauv ntawm kev sib hloov mus rau hauv cov lus tsa suab. Cov racks no feem ntau yog ua los ntawm qis- carbon txias rub hlau thiab ua haujlwm precision machining thaum lub sij hawm tsim khoom los xyuas kom meej lawv cov precision thiab kav ntev. Thaum lub sij hawm tsim khoom, kev txiav npluav thiab kev kho cua sov yog ua los xyuas kom meej qhov tseeb thiab kev ua haujlwm ntawm cov khib nyiab.
Cov racks no tau siv dav hauv ntau yam khoom siv tshuab, xws li tsheb kauj vab, cov cuab yeej siv tshuab, CNC routers, li qub, thiab cov tshuab conveyor. Lawv tuaj yeem hloov cov kev sib hloov mus rau hauv cov lus tsa suab, txhim kho kev ua haujlwm thiab qhov raug ntawm cov cuab yeej siv.Vim nws qhov siab - tsim thiab tsim cov txheej txheem, Cov Txheej Txheem Txheej Txheem Feem ntau yuav tsum tau kho lossis kho dua. Qhov no ua rau lawv txhim khu kev qha thiab kev lag luam hauv kev siv sijhawm ntev -.
Hauv cov ntsiab lus, Mechanized Iav Racks tau siv dav hauv kev lag luam automation thiab precision machinery vim lawv cov kev ua tau zoo thiab kev ntseeg siab. Nws cov txheej txheem tsim khoom zoo nkauj thiab ntau yam kev xaiv tshwj xeeb ua rau nws ua tau raws li qhov xav tau ntawm cov ntawv thov sib txawv.
Parameter
Cov khoom lag luam:
| Cov qauv | Hom Series | Qhov Loj |
| ANSI | 14 1/2℃,3-24DP | 145SR3x2 rau 145SR24x6 |
| 20 degree, 3-20DP | 20SR3x2 rau 20SR20x6 | |
| 20 degree, 4-20DP | 20WR4x2 rau 20WR20x6 | |
| DIN | Mod.1-6 | 20 degree, 250-2000 |

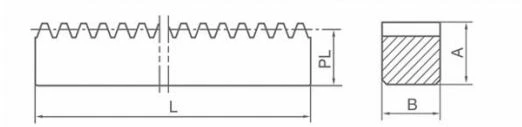

ANSI 14 1-2 degree, 3-24DP
| Catalog Tus lej |
DP | B | A | PL | wt Lbs |
| 145 x 3 x 2 145 x 3 x 4 145 x 6 |
3 3 3 |
3 3 3 |
11/2 11/2 11/2 |
1.167 1.167 1.167 |
24.0 48.0 72.0 |
| 145 x 4 x 2 145 x 4 145 x 6 |
4 4 4 |
2 2 2 |
11/2 11/2 11/2 |
1.250 1.250 1.250 |
17.4 34.8 52.2 |
| 145 x 2B 145 x 4b 145 x 6B |
4 4 4 |
2 2 2 |
2 2 2 |
1.750 1.750 1.750 |
23.6 47.2 70.8 |
| 145 x 2 145 x 4 145 x 6 |
5 5 5 |
13/4 13/4 13/4 |
11/4 11/4 11/4 |
1.050 1.050 1.050 |
12.8 25.6 38.4 |
| 145 x 2B 145 x 4b 145 x 6b |
5 5 5 |
13/4 13/4 13/4 |
11/2 11/2 11/2 |
1.300 1.300 1.300 |
16.0 32.0 48.0 |
| 145 x 6 x 2 145 x 6 x 4 145 x 6 |
6 6 6 |
11/2 11/2 11/2 |
1 1 1 |
0.833 0.833 0.833 |
8.6 17.2 25.8 |
| 145 x 6 B 145 x 4B 145 x 6B |
6 6 6 |
11/2 11/2 11/2 |
11/2 11/2 11/2 |
1.333 1.333 1.333 |
13.8 27.6 41.4 |
| 145 x 8 x 2 145 x 8 x 4 145 x 8 x 6 |
8 8 8 |
11/4 11/4 11/4 |
3/4 3/4 3/4 |
0.625 0.625 0.625 |
5.2 10.4 15.6 |
| 145 x 2B 145 x 4b 145 x 6b |
8 8 8 |
11/4 11/4 11/4 |
11/4 11/4 11/4 |
1.125 1.125 1.125 |
9.8 19.6 29.4 |
| 145 x 10 x 2 145 x 10 x 4 145 x 6 |
10 10 10 |
1 1 1 |
5/8 5/8 5/8 |
0.525 0.525 0.525 |
3.6 7.2 10.8 |
| 145 SR 10 × 2B 145 x 4B 145 x 6B |
10 10 10 |
1 1 1 |
1 1 1 |
0.900 0.900 0.900 |
6.0 12.0 18.0 |
| 145 x 12 x 2 145 x 12 x 4 145 x 12 x 6 |
12 12 12 |
3/4 3/4 3/4 |
1/2 1/2 1/2 |
0.417 0.417 0.417 |
2.0 4.0 6.0 |
| 145 x 12 B 145 x 4B 145 x 6B |
12 12 12 |
3/4 3/4 3/4 |
3/4 3/4 3/4 |
0.667 0.667 0.667 |
3.4 6.8 10.2 |
| 145 x 16 x 2 145 x 16 x 4 145 x 6 |
16 16 16 |
5/16 5/16 5/16 |
5/16 5/16 5/16 |
0.250 0.250 0.250 |
0.50 1.00 1.50 |
| 145 x 16 B 145 x 16 B 145 x 6B |
16 16 16 |
1/2 1/2 1/2 |
1/2 1/2 1/2 |
0.438 0.438 0.438 |
1.52 3.04 4.56 |
| 145 SR20 × 2 145 x 20 x 4 145 SR20 × 6 |
20 20 20 |
3/8 3/8 3/8 |
3/8 3/8 3/8 |
0.325 0.325 0.325 |
0.84 1.68 2.52 |
| 145 x 24 x 2 145 x 24 x 4 145 x 6 |
24 24 24 |
1/4 1/4 1/4 |
1/4 1/4 1/4 |
0.208 0.208 0.208 |
0.38 0.76 1.14 |

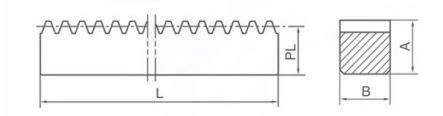

ANSI 20 degree, 3-20DP
| Catalog Tus lej |
DP | B | A | PL | wt Lbs |
| 20 r3x2 20 r3x4 20 r3x6 |
3 3 3 |
3 3 3 |
11/2 11/2 11/2 |
1.167 1.167 1.167 |
24.0 48.0 72.0 |
| 20 r4x2 20 x4r 20 r4x6 |
4 4 4 |
2 2 2 |
11/2 11/2 11/2 |
1.250 1.250 1.250 |
17.4 34.8 52.2 |
| 20 r5x2 20 r5x4 20 r5x6 |
5 5 5 |
13/4 13/4 13/4 |
11/4 11/4 11/4 |
1.050 1.050 1.050 |
12.8 25.6 38.4 |
| 20 r6x2 20 r6x4 20 tx6 |
6 6 6 |
11/2 11/2 11/2 |
11/2 11/2 11/2 |
1.333 1.333 1.333 |
13.8 27.6 41.4 |
| 20 r8x2 20 tx8 20 r8x6 |
8 8 8 |
11/4 11/4 11/4 |
11/4 11/4 11/4 |
1.125 1.125 1.125 |
9.8 19.6 29.4 |
| 20 SR10x2 20 SR10x4 20 r10x6 |
10 10 10 |
1 1 1 |
1 1 1 |
0.900 0.900 0.900 |
6.0 12.0 18.0 |
| 20 r12x2 20 r12x4 20 r12x6 |
12 12 12 |
3/4 3/4 3/4 |
3/4 3/4 3/4 |
0.667 0.667 0.667 |
3.4 6.8 10.2 |
| 20 r16x2 20 r16x4 20 r16x6 |
16 16 16 |
1/2 1/2 1/2 |
1/2 1/2 1/2 |
0.438 0.438 0.438 |
1.52 3.04 4.56 |
| 20 SR20x2 20 x4r 20 r20x6 |
20 20 20 |
3/8 3/8 3/8 |
3/8 3/8 3/8 |
0.325 0.325 0.325 |
0.84 1.68 2.52 |

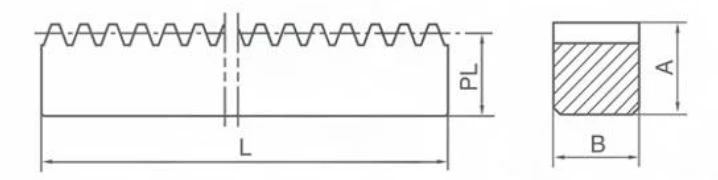

ANSI 20 degree, 4-20DP
| Catalog Tus lej |
DP | B | A | PL | wt Lbs |
| 20 WR4 × 2 20 WR4 × 4 20 WR4 × 6 |
4 | 31/2 31/2 31/2 |
2 2 2 |
1.750 1.750 1.750 |
41.0 82.0 123.0 |
| 20 WR5 × 2 20 WR5 × 4 20 WR5 × 6 |
5 | 21/2 21/2 21/2 |
11/2 11/2 11/2 |
1.300 1.300 1.300 |
22.4 44.8 67.2 |
| 20 WR6 × 2 20 WR6 × 4 20 WR6 × 6 |
6 | 2 2 2 |
11/2 11/2 11/2 |
1.333 1.333 1.333 |
17.0 34.0 51.0 |
| 20 WR8 × 2 20 WR8 × 4 20 WR8 × 6 |
8 | 11/2 11/2 11/2 |
11/2 11/2 11/2 |
1.375 1.375 1.375 |
13.8 27.6 41.3 |
| 20 WR10 × 2 20 WR10 × 4 20 WR10 × 6 |
10 | 11/4 11/4 11/4 |
11/4 11/4 11/4 |
1.150 1.150 1.150 |
9.0 18.0 27.0 |
| 20 WR12 × 2 20 WR12 × 4 20 WR12 × 6 |
12 | 1 1 1 |
1 1 1 |
0.917 0.917 0.917 |
6.4 12.8 19.2 |
| 20 WR16 × 2 20 WR16 × 4 20 WR16 × 6 |
16 | 3/4 3/4 3/4 |
3/4 3/4 3/4 |
0.688 0.688 0.688 |
3.4 6.8 10.2 |
| 20 WR20 × 2 20 WR20 × 4 20 WR20 × 6 |
20 | 1/2 1/2 1/2 |
1/2 1/2 1/2 |
0.450 0.450 0.450 |
0.8 1.6 2.5 |

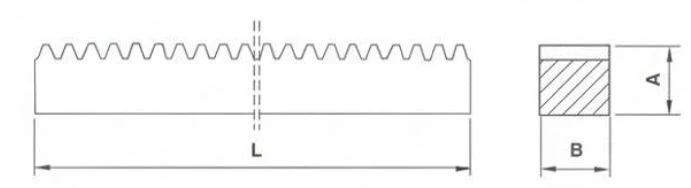

DIN Mod1-6
| Mod | L=250 | L=500 | L=1000 | L=2000 |
| AXB | AXB | AXB | AXB | |
| 1 1.5 2 2.5 3 |
*15X15 *17X17 *20X20 *25X25 *30X30 |
15X15 17X17 20X20 25X25 30X30 |
15X15 17X17 20X20 25X25 30X30 |
15X15 17X17 20X20 25X25 30X30 |
| 4 4 4 4 5 |
- - - *40×40 *50×50 |
- - *30X30 40X40 50X50 |
*22X22 25X25 30X30 40X40 50X50 |
*22X22 25X25 30X30 40X40 50X50 |
| 6 8 |
- - |
*60X60 - |
60X60 *80X80 |
60X60 *80X80 |
