Hangzhou Dej hiav txwv kev lag luam Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm cov saw hlau rau saum ntuj stacker hauv Suav teb. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Hangzhou Ocean Industry Co., Ltd. yog cov chaw tsim khoom thiab feem ntau ntawm peb cov khoom raug xa tawm mus rau Tebchaws Europe txij li xyoo 2005.
Peb cov kev txuas tshwj xeeb thiab cov saw hlau ua liaj ua teb haum rau txhua qhov kev ua haujlwm hnyav. Lawv yog ua los ntawm cov hlau resistant alloysteel nrog anti-corrosioncoating thiab yog sib xws nrog kev cai K, F, CA txuas rau sau qoob, tsheb laij teb thiab balers.High tensile zog rau lub neej kev pab ntev, saj zawg zog OEM & ODM rau ntiaj teb no ua liaj ua teb machinery wholesalers.
Parameter
Feem ntau ntawm peb cov neeg siv khoom OEM xa peb daim duab thiab peb yuav tsim raws li lawv daim duab. Koj tuaj yeem xa peb cov duab kos los ntawm e-mail thiab ces peb tus engineer yuav muab kev pab. Yog tsis muaj duab kos, qauv kuj OK. Catalog kuj OK.
Drawings thiab cov ntaub ntawv parameter
Phaj saw rau stacking tshuab yog ib qho tshwj xeeb - lub hom phiaj phaj saw tau los ntawm cov txheej txheem phaj saw, uas yog tsuas yog siv rau stacking tshuab rau khoob ntim ntshuam, thiab tuaj yeem ua tau raws li cov yam ntxwv ntawm qhov hnyav hnyav thiab qhov siab nqa qhov siab.
Raws li hom tsis ua hauj lwm ntawm cov khoom, kev ntseeg siab ntawm cov khoom yog optimized thiab proprietary txheej txheem technology yog saws, yog li ntawd lub phaj saw rau stacker muaj qhov zoo ntawm siab qaug zog, siab hnav tsis kam thiab siab reliability.and lub neej kev pab cuam mus txog ntau tshaj 10000 teev.

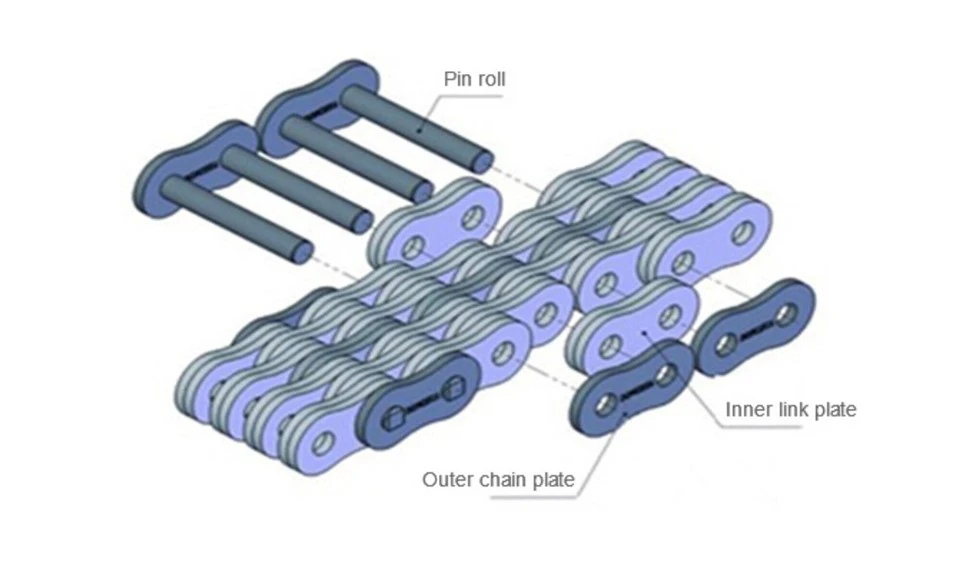

Nplooj chains rau saum ntuj stacker
| Chain No. | Suab | Phaj lacing |
Phaj qhov tob |
Phaj tuab |
Pin txoj kab uas hla |
Pin ntev |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
| P | h2 max |
T max |
d2 max |
L max |
Q min |
Q0 | q | ||
| mm | mm | mm | mm | mm | kN/lbf ib | kN kev | kg/m | ||
| LH2044 (DG) | 31.75 | 4×4 | 30.18 | 4.80 | 11.10 | 43.8 | 231.3/51996 | 254.4 | 7.60 |
| LH2066 (DG) | 31.75 | 6×6 | 30.18 | 4.80 | 11.10 | 64.0 | 347.0/78008 | 380.0 | 11.65 |
| LH2444 (DG) | 38.10 | 4×4 | 36.20 | 5.60 | 12.70 | 51.3 | 302.5/68002 | 332.8 | 10.30 |
| LH2466 (DG) | 38.10 | 6×6 | 36.20 | 5.60 | 12.70 | 75.5 | 453.7/101992 | 475.0 | 11.52 |
| LH2488 (DG) | 38.10 | 8×8 | 36.20 | 5.60 | 12.70 | 96.5 | 605.0/136004 | 665.5 | 21.60 |
| LH2844 (DG) | 44.45 | 4×4 | 42.20 | 6.40 | 14.27 | 57.5 | 382.6/86008 | 400.0 | 14.12 |
| LH2846 (DG) | 44.45 | 4×6 | 42.20 | 6.40 | 14.27 | 73.0 | 382.6/86009 | 400.0 | 17.63 |
| LH2866 (DG) | 44.45 | 6×6 | 42.20 | 6.40 | 14.27 | 83.2 | 706.0/158709 | 810.0 | 21.09 |
| LH3234 (DG) | 50.80 | 3×4 | 48.20 | 7.20 | 17.46 | 57.9 | 440.4/99002 | 506.0 | 15.49 |
| LH3244 (DG) | 50.80 | 4×4 | 48.20 | 7.20 | 17.46 | 65.1 | 573.8/128990 | 602.0 | 17.67 |
| LH3246 (DG) | 50.80 | 4×6 | 48.20 | 7.20 | 17.46 | 80.0 | 573.8/128990 | 602.0 | 22.20 |
| LH3266 (DG) | 50.80 | 6×6 | 48.20 | 7.20 | 17.46 | 96.7 | 867.4/194991 | 911.0 | 26.70 |
| LH3288 (DG) | 50.80 | 8×8 | 48.20 | 7.20 | 17.46 | 123.3 | 1156.5/259981 | 1214.0 | 35.00 |
| LH4044 (DG) | 63.50 | 4×4 | 60.33 | 9.91 | 23.81 | 91.5 | 867.4/194992 | 954.1 | 31.60 |
| LH4066 (DG) | 63.50 | 6×6 | 60.33 | 9.91 | 23.81 | 131.2 | 1301.1/292487 | 1496.0 | 48.10 |
| LH2466F2 (DG) | 38.10 | 6×6 | 36.20 | 5.60 | 12.70 | 75.5 | 648.0/145670 | 710.0 | 11.52 |
| LH2488F4 (DG) | 38.10 | 8×8 | 36.20 | 5.60 | 12.70 | 97.3 | 800.0/179840 | 880.0 | 21.69 |
| LH3266 (DGF1) | 50.80 | 6×6 | 48.20 | 7.20 | 17.46 | 94.2 | 993.6/223361 | 1143.0 | 26.35 |
| LH3288 (DGF2) | 50.80 | 8×8 | 48.20 | 7.20 | 17.46 | 124.5 | 1364.6/306774 | 1500.0 | 35.09 |
| LH3288F7 (DG) | 50.80 | 8×8 | 48.20 | 7.20 | 17.46 | 127 | 1513.0/340122 | 1664.3 | 35.19 |
| BL2088F2 (DG) | 63.50 | 8×8 | 58.20 | 9.70 | 23.81 | 170.0 | 1734.8/389983 | 1995.0 | 56.74 |
| LWB 2466 (DG) | 38.10 | 6×6 | 33.40 | 5.00 | 14.63 | 67.4 | 510.0/114648 | 536.0 | 13.00 |
| LWB 2866 (DG) | 44.45 | 6×6 | 36.00 | 6.00 | 15.90 | 80.2 | 600.0/134880 | 660.0 | 16.31 |
| LWB 4066 (DG) | 63.50 | 6×6 | 52.70 | 8.00 | 22.89 | 106.5 | 1080.0/242793 | 1245.0 | 31.62 |
| LWB 4088 (DG) | 63.50 | 8×8 | 52.70 | 8.00 | 22.89 | 140.0 | 1400.0/314733 | 1650.0 | 42.10 |
| LL2844 (DGF1) | 44.45 | 4×4 | 36.00 | 6.00 | 15.90 | 54.7 | 400.0/89923 | 450.0 | 10.92 |
| LL2866 (DGF1) | 44.45 | 6×6 | 36.00 | 6.00 | 15.90 | 80.2 | 650.0/146120 | 715.0 | 16.20 |
| LL3244F2 (DG) | 50.80 | 4×4 | 43.10 | 6.00 | 17.76 | 55.0 | 520.0/116900 | 570.0 | 12.62 |
| LL3244F6 (DG) | 50.80 | 4×4 | 42.00 | 6.00 | 17.81 | 57.5 | 520.0/116900 | 570.0 | 12.35 |
| LL3266F6 (DG) | 50.80 | 6×6 | 42.00 | 6.00 | 17.81 | 81.7 | 780.0/175344 | 858.0 | 18.30 |
| TXL 3266 (DGF1) | 50.80 | 6×6 | 42.00 | 6.40 | 17.81 | 86.0 | 780.0/175344 | 858.0 | 19.53 |
| LL3266F3 (DG) | 50.80 | 6×6 | 43.10 | 6.00 | 17.76 | 79.9 | 780.0/178344 | 858.0 | 18.84 |
| LL3288F6 (DG) | 50.80 | 8×8 | 42.00 | 6.00 | 17.8 | 106.0 | 1040.0/233792 | 1144.0 | 24.30 |
| TXL 3288 (DGF2) | 50.80 | 8×8 | 42.00 | 6.40 | 17.81 | 112.0 | 1040.0/233792 | 1144.0 | 25.91 |
| LL4088F2 (DG) | 63.50 | 8×8 | 52.70 | 8.20 | 22.89 | 140.0 | 1440.0/323725 | 1670.0 | 42.39 |
| Chain No. | Suab | Phaj lacing |
Phaj qhov tob |
Phaj tuab |
Pin txoj kab uas hla |
Pin ntev |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
| P | h2 max |
T max |
d2 max |
L max |
Q min |
Q0 | q | ||
| mm | mm | mm | mm | mm | kN/ib | kN kev | kg/m | ||
| LWM 3244 (DG) | 50.80 | 4×4 | 42.00 | 6.40 | 17.81 | 65.0 | 520.0/116895 | 598.0 | 13.73 |
| LWM 3266 (DG) | 6×6 | 90.8 | 780.0/175344 | 897.0 | 19.94 | ||||
| LWM 3288 (DG) | 8×8 | 117.0 | 1040.0/233792 | 1196.0 | 26.10 | ||||
| LL321010F10 (DG) | 50.80 | 10×10 | 42.00 | 6.00 | 17.81 | 134.3 | 1300.0/292240 | 1430.0 | 30.89 |
| LL4066F5 (DG) | 63.50 | 6×6 | 52.70 | 8.00 | 22.89 | 112.7 | 1080.0/242794 | 1245.0 | 32.59 |
| LL4088F4 (DG) | 63.50 | 8×8 | 52.70 | 8.00 | 22.89 | 144.0 | 1400.0/314720 | 1540.0 | 42.38 |
FAQ
Q: Dab tsi zoo dua cov saw hlau muaj rau saum ntuj stacker nqa?
A: Superior load bearing thiab low elongation tuav ruaj khov stacking positioning.
Q: Yuav ua li cas txo qis hnav thaum nquag nqa thiab nqis?
A: Hardened tiv tauj qhov chaw txiav kev sib txhuam poob thiab txuas lub saw lub neej kev pab cuam.
Q: Koj lub sijhawm xa khoom thiab xa khoom ntev npaum li cas?
A: 1.Sample Lead-times: feem ntau 10 hnub ua haujlwm.
2.Production Lead-times: 20-40 hnub ua haujlwm tom qab tau txais koj cov nyiaj tso cia.
Q: Koj qhov zoo yog dab tsi?
A: 1. Chaw tsim tshuaj paus, tus nqi sib tw tshaj plaws thiab zoo.
2. Zoo meej technical engineers muab kev txhawb nqa zoo tshaj plaws rau koj.
3. OEM muaj.
4. Cov khoom lag luam nplua nuj thiab xa khoom sai.
