Hangzhou Dej hiav txwv kev lag luam Co., Ltd. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Hangzhou Ocean Industry Co., Ltd. yog cov chaw tsim khoom thiab feem ntau ntawm peb cov khoom raug xa tawm mus rau Tebchaws Europe txij li xyoo 2005.
Peb cov kev txuas tshwj xeeb thiab cov saw hlau ua liaj ua teb haum rau txhua qhov kev ua haujlwm hnyav. Lawv yog ua los ntawm cov hlau resistant alloysteel nrog anti-corrosioncoating thiab yog sib xws nrog kev cai K, F, CA attachments rau sau, tsheb laij teb thiab balers.High tensile zog rau lub neej kev pab cuam ntev, saj zawg zog OEM & ODM rau ntiaj teb no ua liaj ua teb machinery wholesalers.
Parameter
Feem ntau ntawm peb cov neeg siv khoom OEM xa peb daim duab thiab peb yuav tsim raws li lawv daim duab. Koj tuaj yeem xa peb cov duab kos los ntawm e-mail thiab ces peb tus engineer yuav muab kev pab. Yog tsis muaj duab kos, qauv kuj OK. Catalog kuj OK.
Drawings thiab cov ntaub ntawv parameter
Ntxiv rau cov saw hlau, traction saw tseem suav nrog cov chaw nres tsheb hauv chaw nres tsheb, ntau- phaj tus pin saw thiab cov menyuam- cov saw tsis pub nqa, ntawm cov ntau- phaj tus pin saw raws li tus qauv DIN, thiab cov menyuam- cov saw hlau pub dawb yog tib yam li cov saw hlau loj.
Siv cov-cov ntaub ntawv zoo thiab kev ua haujlwm siab heev. cov khoom muaj lub zog tensile siab thiab siab qaug zog, kom ntseeg tau tias du, nyab xeeb thiab txhim khu kev qha lifting txheej txheem. Lub zog tensile ntawm cov menyuam saw rau chaw nres tsheb yog ntau tshaj 1.2 npaug ntawm qhov tsawg kawg nkaus tensile lub zog ntawm ISO 606 tus qauv cov menyuam saw.
Cov khoom siv dav siv hauv lifting thiab traversing chaw nres tsheb cov cuab yeej, ntsug nqa khoom thiab lwm yam chaw.

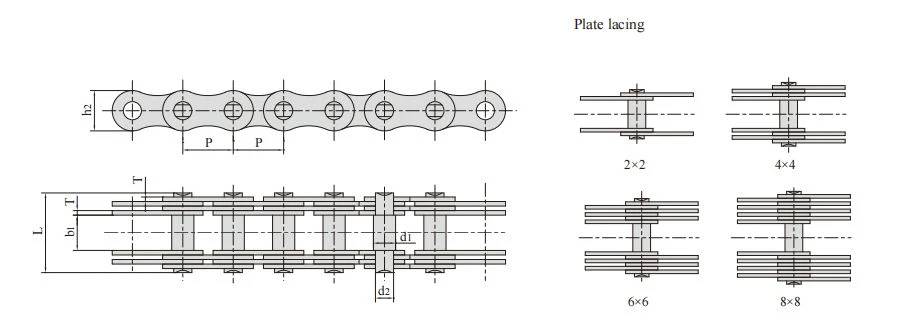

Gal cov chains
| Chain No. | Suab | Dav nruab nrab daim hlau sab hauv |
Phaj lacing |
Pin txoj kab uas hla |
Pin ntev |
Phaj qhov tob |
Phaj tuab |
Tensile zog |
Qhov hnyav rau meter |
|
| P | b1 min |
d1 max |
d2 max |
L max |
h2 max |
T max |
Q min |
q | ||
| mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kg/m | ||
| MP15 | 15 | 12 | 2×2 | 5 | 4 | 25 | 12 | 2.03 | 5.0/1125 | 0.7 |
| MP20 | 20 | 15 | 2×2 | 8 | 6 | 28 | 15 | 2.03 | 12.5/2812 | 1.1 |
| MP25 | 25 | 18 | 2×2 | 10 | 8 | 36 | 18 | 3.00 | 25.0/5624 | 1.8 |
| MP30 | 30 | 20 | 4×4 | 11 | 9 | 51 | 20 | 3.00 | 40.0/8999 | 3.4 |
| MP35 | 35 | 22 | 4×4 | 12 | 10 | 53 | 26 | 3.00 | 60.0/13498 | 4.5 |
| MP40 | 40 | 25 | 4×4 | 14 | 12 | 58 | 32 | 3.00 | 80.0/17998 | 5.0 |
| MP45 | 45 | 30 | 4×4 | 17 | 14 | 63 | 35 | 3.00 | 100.0/22497 | 7.0 |
| MP50 | 50 | 35 | 4×4 | 22 | 18 | 90 | 40 | 4.50 | 150.0/33746 | 11.3 |
| MP55 | 55 | 40 | 4×4 | 24 | 21 | 108 | 42 | 6.00 | 200.0/44994 | 14.5 |
| MP60 | 60 | 45 | 4×4 | 26 | 23 | 114 | 46 | 6.00 | 250.0/56243 | 17.1 |
| MP70 | 70 | 50 | 6×6 | 32 | 28 | 148 | 55 | 6.00 | 375.0/84364 | 34.0 |
| MP80 | 80 | 60 | 6×6 | 36 | 32 | 159 | 60 | 6.00 | 500.0/112486 | 39.0 |
| MP90 | 90 | 70 | 6×6 | 40 | 36 | 184 | 70 | 7.00 | 750.0/168728 | 53.0 |
| MP100 | 100 | 80 | 8×8 | 45 | 40 | 224 | 80 | 7.00 | 1000.0/224972 | 77.0 |
| MP110 | 110 | 90 | 8×8 | 50 | 45 | 236 | 90 | 7.00 | 1250.0/281215 | 90.0 |
| MP120 | 120 | 100 | 8×8 | 55 | 50 | 262 | 100 | 8.00 | 1500.0/337458 | 112.0 |
| Chain No. | Suab | Dav nruab nrab daim hlau sab hauv |
Phaj lacing |
Pin txoj kab uas hla |
Pin ntev |
Phaj qhov tob |
Phaj tuab |
Tensile zog |
Qhov hnyav rau meter |
|
| P | b1 min |
d1 max |
d2 max |
L max |
h2 max |
T max |
Q min |
q | ||
| mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kg/m | ||
| LF 30 | 30.0 | 16.5 | 2×2 | 6.0 | 5.00 | 27.7 | 15.7 | 2.03 | 20.0/4496 | 0.72 |
| MP50F2 | 50.0 | 38.0 | 6×6 | 22.0 | 18.00 | 85.0 | 40.0 | 3.00 | 250.0/56202 | 11.11 |
| MP50.8 | 50.8 | 36.0 | 6×6 | 22.0 | 17.81 | 85.4 | 42.0 | 3.25 | 200.0/44961 | 11.90 |
| MP70F1 | 70.0 | 21.0 | 2×2 | 16.5 | 14.00 | 51.5 | 30.5 | 6.00 | 145.0/32597 | 4.16 |
| MP70F2 | 70.0 | 50.0 | 8×8 | 32.0 | 28.00 | 158.0 | 55.0 | 5.00 | 375.0/84303 | 44.00 |
| MP70F3 | 70.0 | 52.0 | 8×8 | 32.0 | 28.00 | 160.0 | 55.0 | 5.00 | 375.0/84303 | 31.62 |
| MP80F1 | 80.0 | 60.0 | 8×8 | 36.0 | 32.00 | 170.0 | 60.0 | 5.00 | 500.0/112404 | 35.32 |
| *MP90F2 | 90.0 | 60.4 | 6×6 | 40.0 | 37.00 | 182.0 | 70.0 | 8.00 | 700.0/157366 | 52.70 |
| *MP90F1 | 90.0 | 60.0 | 4×4 | 36.0 | 32.00 | 146.0 | 60.0 | 8.00 | 600.0/134885 | 32.22 |
| * MP110F1 | 110.0 | 90.0 | 8×8 | 50.0 | 45.00 | 239.0 | 90.0 | 7.00 | 1250.0/281011 | 87.50 |
| Lus Cim: * txhais tau tias ncaj txuas phaj, ob qho kawg ntawm tus pin nrog ntxhua khaub ncaws | ||||||||||

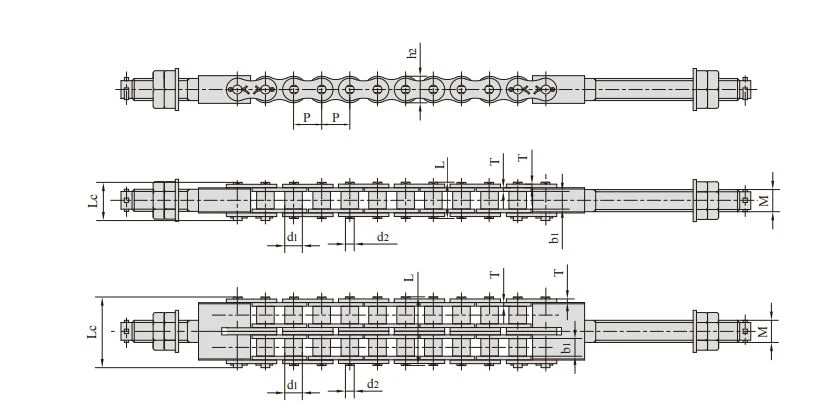

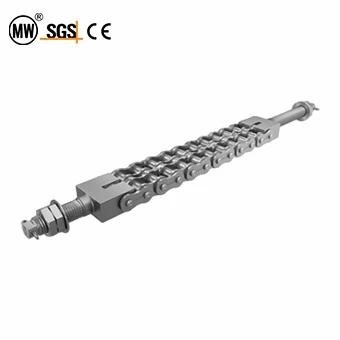

Tsheb nres tsheb chains
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Bolt hom |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
M | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kN kev | kg/m | |
| 16 ZPO-1 | 25.40 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | M20 | 71.55/16261 | 81.8 | 2.60 |
| 16 ZPO-2 | 25.40 | 15.88 | 15.75 | 7.92 | 62.7 | 65.8 | 24.0 | 3.25 | M20 | 143.10/32523 | 166.3 | 5.15 |
| 20 ALT-1 | 31.75 | 19.05 | 18.90 | 9.53 | 40.4 | 44.7 | 30.0 | 4.00 | M24 | 107.85/24511 | 118.6 | 3.91 |
| 20 ALT-2 | 31.75 | 19.05 | 18.90 | 9.53 | 76.4 | 80.5 | 30.0 | 4.00 | M24 | 215.70/49023 | 234.4 | 7.80 |
| 20 ALT-3 | 31.75 | 19.05 | 18.90 | 9.53 | 112.2 | 116.3 | 30.0 | 4.00 | M24 | 323.55/73534 | 351.6 | 11.77 |
| 24 ZPO-1 | 38.10 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.7 | 4.80 | M30 | 149.20/330909 | 161.1 | 5.62 |
| 24 ZPO-2 | 38.10 | 22.23 | 25.22 | 11.10 | 95.8 | 99.7 | 35.7 | 4.80 | M30 | 298.40/67818 | 322.2 | 11.70 |

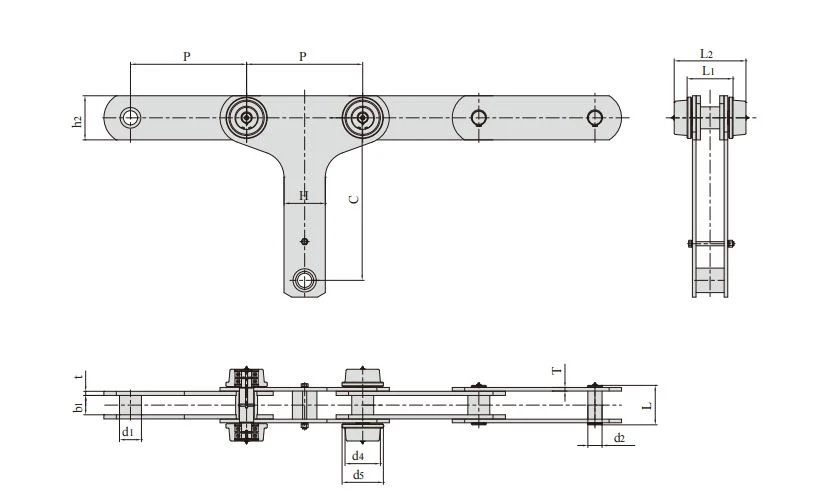

| Chain No. | Suab | Boush txoj kab uas hla |
Cov menyuam txoj kab uas hla |
Dav nruab nrab sab hauv daim hlau |
Pin txoj kab uas hla |
Pin ntev |
Phaj qhov tob |
Phaj tuab |
Daim ntawv txuas qhov ntev |
Tensile zog |
||||
| P | d1 max |
d4 min |
d5 min |
b1 | d2 max |
L max |
h2 | t/T | C | H | L1 | L2 | Q min |
|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | |
| P450F1 | 450.0 | 85.0 | 137.0 | 158.0 | 75 | 55 | 153 | 171 | 16/14 | 630 | 160 | 178 | 278 | 1800/404640 |
| P450F2 | 450.0 | 85.0 | 136.5 | 180.0 | 75 | 55 | 174 | 171 | 16/14 | 675 | 170 | 166 | 282 | 1764/396547 |
| P450F4 | 450.0 | 85.0 | 136.5 | 180.0 | 75 | 55 | 174 | 171 | 16/14 | 630 | 160 | 166 | 282 | 1764/396547 |

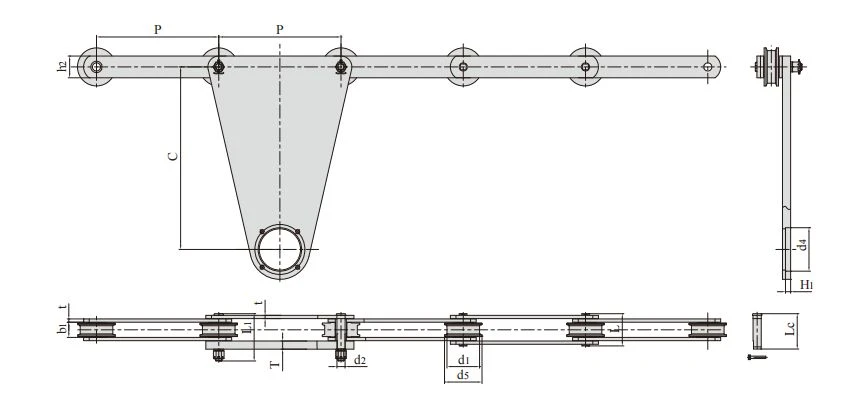

| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab sab hauv daim hlau |
Pin txoj kab uas hla |
Pin ntev |
Phaj qhov tob |
Phaj tuab |
Daim ntawv txuas qhov ntev |
Tensile zog |
|||||
| P | d1 max |
d5 min |
b1 | d2 max |
L max |
Lc max |
L1 max |
h2 | t/T | C | d4 | H1 | Q min |
|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | |
| P450F5 | 450 | 120 | 138 | 56 | 30 | 120 | 130.0 | 174.0 | 80 | 12.0/30.0 | 672 | 160.0 | 19 | 450.0/101160 |
| P450F6 | 450 | 120 | 140 | 84 | 36 | 150 | 159.0 | 210.0 | 100 | 12.0/30.0 | 672 | 160.0 | 19 | 800.0/179840 |
| P450F13 | 450 | 120 | 140 | 84 | 36 | 150 | 159.0 | 210.0 | 100 | 12.0/30.0 | 675 | 135.0 | 13 | 800.0/179840 |
| *P460F1 | 460 | 118 | 138 | 51 | 36 | - | 134.5 | 173.5 | 90 | 14.0/20.0 | 665 | 110.4 | - | 650.0/146120 |
| P460F2 | 460 | 120 | 140 | 84 | 36 | 150 | 159.0 | 202.0 | 100 | 12.0/25.0 | 675 | 135.0 | 13 | 800.0/179840 |
| P460F3 | 460 | 130 | 144 | 60 | 36 | 126 | 135.0 | 185.0 | 100 | 12.0/30.0 | 650 | 110.0 | - | 800.0/179840 |
| P460F5 | 460 | 100 | 119 | 55 | 30 | 118 | 130.0 | 160.0 | 75 | 12.0/20.0 | 570 | 107.0 | - | 650.0/146120 |
| * Nrog cov kabmob hauv cov menyuam | ||||||||||||||
Rollerless hoisting chains
| Chain No. | Suab | Bush txoj kab uas hla |
Dav nruab nrab innerplates |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kN kev | kg/m | |
| 45-1 | 12.700 | 5.63 | 7.85 | 3.96 | 16.6 | 17.8 | 12.00 | 1.50 | 14.10/3205 | 17.5 | 0.54 |
| 55-1 | 15.875 | 7.03 | 9.40 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 22.20/5045 | 29.4 | 0.83 |
| 65-1 | 19.050 | 8.33 | 12.57 | 5.94 | 25.9 | 27.7 | 18.00 | 2.42 | 31.80/7227 | 41.5 | 1.22 |
| 85-1 | 25.400 | 11.10 | 15.75 | 7.92 | 32.7 | 35.0 | 24.00 | 3.25 | 56.70/12886 | 69.4 | 2.16 |
| 105-1 | 31.750 | 13.60 | 18.90 | 9.53 | 40.4 | 44.7 | 30.00 | 4.00 | 88.50/20114 | 109.2 | 3.31 |
| 125-1 | 38.100 | 15.60 | 25.22 | 11.10 | 50.3 | 54.3 | 35.70 | 4.80 | 127.00/28864 | 156.3 | 4.97 |
| 145-1 | 44.450 | 18.00 | 25.22 | 12.70 | 54.4 | 59.0 | 41.00 | 5.60 | 172.40/39182 | 212.0 | 6.50 |
| 165-1 | 50.800 | 20.00 | 31.55 | 14.27 | 64.8 | 69.6 | 47.80 | 6.40 | 226.80/51545 | 278.9 | 8.70 |
FAQ
Q: Dab tsi yog qhov tseem ceeb ntawm kev ua haujlwm traction chain tsom rau?
A: Muaj peev xwm thauj khoom thiab tsawg tsawg kom ua haujlwm rub tawm tsis tu ncua.
Q: Yuav ua li cas kom ntev kev pab cuam lub neej nyob rau hauv nquag hnyav traction?
A: Tag nrho cov cua sov- kho tus pins thiab lub tes tsho txo kev sib txhuam kom zoo.
Q: Yog tias koj tsis tuaj yeem pom cov khoom ntawm peb lub vev xaib, koj yuav ua li cas ntxiv?
A: Thov xa peb cov lus nug nrog cov khoom duab thiab kos duab los ntawm email lossis lwm txoj hauv kev thiab peb yuav kuaj.
Q: Koj lub sijhawm xa khoom thiab xa khoom ntev npaum li cas?
A: 1.Sample Lead-times: feem ntau 10 hnub ua haujlwm.
2.Production Lead-times: 20-40 hnub ua haujlwm tom qab tau txais koj cov nyiaj tso cia.
