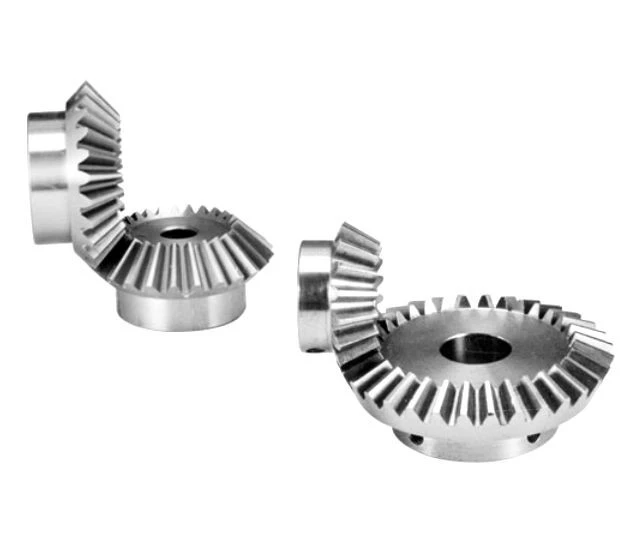

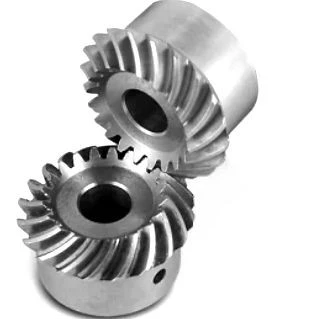

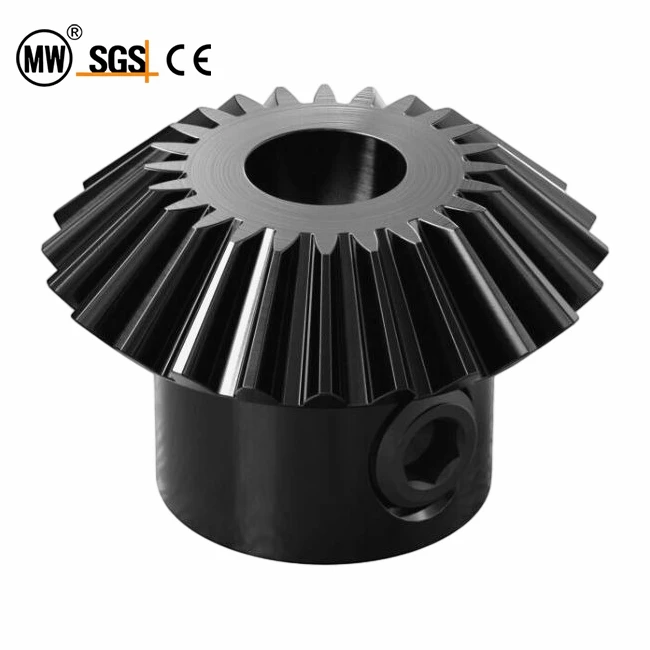

Lub Tshuag Bore Steel Miter Gears-Ib series yog ib tug siab - cov khoom siv precision iav dav siv nyob rau hauv ntau yam tshuab kis tau tus mob. Cov khoom lag luam no muaj cov yam ntxwv hauv qab no thiab cov lus qhia tshwj xeeb: Lub zog hauv cov koob no ua raws li ANSI thiab DIN cov qauv, suav nrog lub kaum ntse ntse 20º thiab ntau lub iav sib piv, muab cov khoom lag luam ntiv tes haum rau ANSI kev ua lag luam thiab cov khoom lag luam ntiv tes haum rau lub khw DIN.
Nws yog tsuas yog siv nyob rau hauv kev sib kis systems uas yuav tsum tau high precision thiab kev cia siab rau, xws li industrial automation khoom, precision instruments, thiab lwm yam khoom siv kho tshuab. Lub kaum sab xis siab yog 20º, uas yog tus qauv siv feem ntau hauv cov qauv iav feem ntau.
Cov iav piv thiab txoj kab uas hla ntau tuaj yeem xaiv tau raws li cov kev xav tau tshwj xeeb kom tau raws li cov kev xav tau sib txawv.
Hauv cov ntsiab lus, Stock Bore Steel Miter Gears-A series tau dhau los ua qhov kev xaiv zoo tshaj plaws rau ntau daim ntawv thov kev lag luam vim nws qhov kev ua tau zoo heev thiab kev siv dav.
Parameter
Cov khoom lag luam
| Cov qauv | Hom Series | Qhov Loj |
| ANSI | 20 degree, 1: 1 | 4DP-24 NP |
| DIN | A series (1: 1) | 20℃Mod.1.5-5 |
| Aseries (1: 2) | 20℃Mod.1.5-5 | |
| Aseries (1:3) | 20℃Mod.1.5-5 | |
| Aseries (1:4) | 20℃Mod.1.5-5 | |
| Bseries (1: 1) | 20℃Mod.1.5-5 | |
| Bseries (1:4) | 20℃Mod.1.5-5 |
ANSI
siab lub kaum sab xis 20 degree

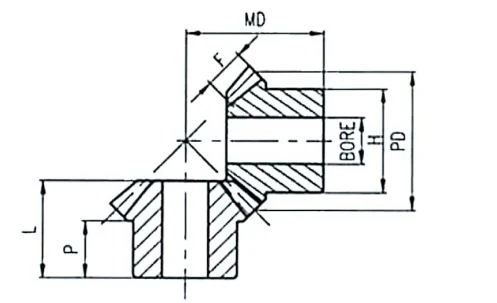

Steel Plain Bore Unhardened Cov hniav 1: 1
| Suab | Z | Tshooj No. | PD | OD | MD | Npog | Qhov ntev | wb lbs | ||||
| Tshuag | Max | F | L | P | H | |||||||
| 4 DP ib | 24 24 28 |
CAI-4DP 24 CAI-4DP24A CAI-4DP 28 |
6.00 6.00 7.00 |
6.36 6.36 7.36 |
51/2 51/2 6 |
11/2 13/4 2 |
23/8 23/8 3 |
1.330 1.330 1.430 |
39/16 39/16 35/8 |
115/16 115/16 115/16 |
4 4 5 |
14.5 14.0 21.5 |
| 5 DP ib | 25 25 25 |
CAI-5DP 25 CAI-5DP25A CAI-5DP25B |
5.00 5.00 5.00 |
5.29 5.29 5.29 |
45/8 45/8 45/8 |
13/8 11/2 13/4 |
21/4 21/4 21/4 |
1.100 1.100 1.100 |
3 3 3 |
13/4 13/4 13/4 |
31/2 31/2 31/2 |
8.8 8.4 7.8 |
| 6 DP ib | 24 24 27 27 |
CAI-6DP 24 CAI-6DP24A CAI-6DP 27 CA-6DP27A |
4.00 4.00 4.50 4.50 |
4.24 4.24 4.74 4.74 |
35/8 35/8 41/8 41/8 |
11/4 11/2 11/4 11/2 |
2 2 23/16 23/16 |
0.860 0.860 0.960 0.960 |
25/16 25/16 25/8 25/8 |
15/16 15/16 11/2 11/2 |
3 3 31/4 31/4 |
4.4 4.3 6.3 5.9 |
| 8 DP ib | 24 24 24 28 28 28 32 |
CAI-8DP24 CAI-8DP24A CAI-8DP24B CAI-8DP28 CAI-8DP28A CAI-8DP28B CAI-8DP32 |
3.00 3.00 3.00 3.50 3.50 3.50 4.00 |
3.18 3.18 3.18 3.68 3.68 3.68 4.18 |
29/16 23/4 23/4 31/4 31/4 31/4 35/8 |
3/4 1 11/4 1 13/16 11/4 1 |
1 13/8 15/8 15/8 15/8 15/8 2 |
0.640 0.640 0.640 0.750 0.750 0.750 0.840 |
137/64 149/64 149/64 23/32 23/32 23/32 29/32 |
13/16 1 1 11/4 11/4 11/4 11/8 |
13/4 21/2 21/2 21/2 21/2 21/2 3 |
1.5 2.1 1.9 2.9 2.8 2.6 4.8 |
| 10 DPJ | 20 20 20 20 25 25 25 30 |
CAI-10DP20A CAI-10DP20B CAI-10DP20 CAI-10DP20C CAI-10DP25 CAI-10DP25A CAI-10DP25B CAI-10DP30 |
2.00 2.00 2.00 2.00 2.50 2.50 2.50 3.00 |
2.14 2.14 2.14 2.14 2.64 2.64 2.64 3.14 |
2 2 2 2 27/16 27/16 27/16 23/4 |
1/2 5/8 3/4 7/8 3/4 7/8 1 3/4 |
7/8 7/8 7/8 7/8 11/4 11/4 11/4 15/8 |
0.440 0.440 0.440 0.440 0.550 0.550 0.550 0.640 |
123/64 123/64 123/64 123/64 15/8 15/8 15/8 13/4 |
13/16 13/16 13/16 13/16 15/16 15/16 15/16 1 |
15/8 15/8 15/8 15/8 2 2 2 2 |
0.75 0.72 0.67 0.58 1.2 1.2 1.2 1.8 |
| 12 DPJ | 15 15 15 18 18 18 21 21 21 21 24 30 |
CAI-12DP15 CAI-12DP15A CAI-12DP15B CAI-12DP18 CAI-12DP18A CAI-12DP18B CAI-12DP21 CAI-12DP21A CAI-12DP21B CAI-12DP21C CAI-12DP24 CAI-12DP30 |
1.25 1.25 1.25 1.50 1.50 1.50 1.75 1.75 1.75 1.75 2.00 2.50 |
1.37 1.37 1.37 1.62 1.62 1.62 1.87 1.87 1.87 1.87 2.12 2.62 |
11/4 11/4 11/4 11/2 11/2 11/2 13/4 13/4 13/4 13/4 17/8 25/16 |
3/8 7/16 1/2 1/2 5/8 3/4 1/2 9/16 5/8 3/4 1/2 5/8 |
3/4 3/4 3/4 7/8 7/8 7/8 1 1 1 1 1 11/4 |
0.270 0.270 0.270 0.320 0.320 0.320 0.390 0.390 0.390 0.390 0.430 0.540 |
55/64 55/64 55/64 11/64 11/64 11/64 13/16 13/16 13/16 13/16 17/32 131/64 |
1/2 1/2 1/2 5/8 5/8 5/8 11/16 11/16 11/16 11/16 11/16 27/32 |
1 1 1 11/4 11/4 11/4 13/8 13/8 13/8 13/8 11/2 13/4 |
0.17 0.16 0.15 0.30 0.25 0.22 0.45 0.45 0.45 0.38 0.62 1.10 |
| 14 PAB | 14 14 |
CAI-14DP14 CAI-14DP14A |
1.00 1.00 |
1.11 1.11 |
11/16 11/16 |
3/8 7/16 |
5/8 5/8 |
0.190 0.190 |
47/64 47/64 |
1/2 1/2 |
7/8 7/8 |
0.10 0.10 |
| 16 PIB | 12 16 20 24 |
CAI-16DP12 CAI-16DP16 CAI-16DP20 CAI-16DP24 |
0.75 1.00 1.25 1.50 |
0.84 1.09 1.34 1.59 |
13/16 11/16 11/4 13/8 |
5/6 3/8 7/16 1/2 |
7/16 1/2 5/8 7/8 |
0.160 0.220 0.270 0.310 |
37/64 3/4 27/32 7/8 |
3/8 7/16 1/2 1/2 |
5/8 3/4 1 1 |
0.10 0.10 0.20 0.20 |
| 20 DPJ | 20 25 |
CAI-24DP20 CAI-24DP25 |
1.00 1.25 |
1.07 1.32 |
11/8 13/16 |
3/8 3/8 |
5/8 3/4 |
0.230 0.250 |
13/16 3/4 |
1/2 7/16 |
3/4 1 |
0.10 0.10 |
| 24 PIB | 24 | CAI-24DP24 | 1.00 | 1.06 | 29/32 | 1/4 | 1/2 | 0.200 | 9/16 | 9/32 | 5/8 | 0.10 |
Steel Plain Bore Hardened hniav 1: 1
| Suab | Z | Tshooj No | PD | OD | MD | Npog | Qhov ntev | wb lbs | ||||
| Tshuag | Max | F | L | P | H | |||||||
| 4 DP ib | 24 24 28 |
CAI-H4DP24 CAI-H4DP24A CAI-H4DP28 |
6.00 6.00 7.00 |
6.36 6.36 7.36 |
51/2 51/2 6 |
11/2 13/4 2 |
23/8 23/8 3 |
1.330 1.330 1.430 |
39/16 39/16 35/8 |
115/16 115/16 115/16 |
4 4 5 |
14.5 14.0 21.5 |
| 5 DP ib | 25 25 25 |
CAI-H5DP25 CAI-H5DP25A CAI-H5DP25B |
5.00 5.00 5.00 |
5.29 5.29 5.29 |
45/8 45/8 45/8 |
13/8 11/2 13/4 |
21/4 21/4 21/4 |
1.100 1.100 1.100 |
3 3 3 |
13/4 13/4 13/4 |
31/2 31/2 31/2 |
8.8 8.4 7.8 |
| 6 DP ib | 24 24 27 27 |
CAI-H6DP24 CAI-H6DP24A CAI-H6DP27 CA-6DP27A |
4.00 4.00 4.50 4.50 |
4.24 4.24 4.74 4.74 |
35/8 35/8 41/8 41/8 |
11/4 11/2 11/4 11/2 |
2 2 23/16 23/16 |
0.860 0.860 0.960 0.960 |
25/16 25/16 25/8 25/8 |
15/16 15/16 11/2 11/2 |
3 3 31/4 31/4 |
4.4 4.3 6.3 5.9 |
| 8 DP ib | 24 24 24 28 28 28 32 |
CAI-H8DP24 CAI-H8DP24A CAI-H8DP24B CAI-H8DP28 CAI-H8DP28A CAI-H8DP28B CAI-H8DP32 |
3.00 3.00 3.00 3.50 3.50 3.50 4.00 |
3.18 3.18 3.18 3.68 3.68 3.68 4.18 |
29/16 23/4 23/4 31/4 31/4 31/4 35/8 |
3/4 1 11/4 1 13/16 11/4 1 |
1 13/8 15/8 15/8 15/8 15/8 2 |
0.640 0.640 0.640 0.750 0.750 0.750 0.840 |
137/64 149/64 149/64 23/32 23/32 23/32 29/32 |
13/16 1 1 11/4 11/4 11/4 11/8 |
13/4 21/2 21/2 21/2 21/2 21/2 3 |
1.5 2.1 1.9 2.9 2.8 2.6 4.8 |
| 10 DPJ | 20 20 20 20 25 25 25 30 |
CAI-H10DP20A CAI-H10DP20B CAI-H10DP20 CAI-H10DP20C CAI-H10DP25 CAI-H10DP25A CAI-H10DP25B CAI-H10DP30 |
2.00 2.00 2.00 2.00 2.50 2.50 2.50 3.00 |
2.14 2.14 2.14 2.14 2.64 2.64 2.64 3.14 |
2 2 2 2 27/16 27/16 27/16 23/4 |
1/2 5/8 3/4 7/8 3/4 7/8 1 3/4 |
7/8 7/8 7/8 7/8 11/4 11/4 11/4 15/8 |
0.440 0.440 0.440 0.440 0.550 0.550 0.550 0.640 |
123/64 123/64 123/64 123/64 15/8 15/8 15/8 13/4 |
13/16 13/16 13/16 13/16 15/16 15/16 15/16 1 |
15/8 15/8 15/8 15/8 2 2 2 2 |
0.75 0.72 0.67 0.58 1.2 1.2 1.2 1.8 |
| 12 DPJ | 15 15 15 18 18 18 21 21 24 30 |
CAI-H12DP15 CAI-H12DP15A CAI-H12DP15B CAI-H12DP18 CAI-H12DP18A CAI-H12DP18B CAI-H12DP21 CAI-H12DP21A CAI-H12DP24 CAI-H12DP30 |
1.25 1.25 1.25 1.50 1.50 1.50 1.75 1.75 2.00 2.50 |
1.37 1.37 1.37 1.62 1.62 1.62 1.87 1.87 2.12 2.62 |
11/4 11/4 11/4 11/2 11/2 11/2 13/4 13/4 17/8 25/16 |
3/8 7/16 1/2 1/2 5/8 3/4 1/2 5/8 1/2 5/8 |
3/4 3/4 3/4 7/8 7/8 7/8 1 1 1 11/4 |
0.270 0.270 0.270 0.320 0.320 0.320 0.390 0.390 0.430 0.540 |
55/64 55/64 55/64 11/64 11/64 11/64 13/16 13/16 17/32 131/64 |
1/2 1/2 1/2 5/8 5/8 5/8 11/16 11/16 11/16 27/32 |
1 1 1 11/4 11/4 11/4 13/8 13/8 11/2 13/4 |
0.17 0.16 0.15 0.30 0.25 0.22 0.45 0.45 0.62 1.10 |
| 14 PAB | 14 14 |
CAI-H14DP14 CAI-H14DP14A |
1.00 1.00 |
1.11 1.11 |
11/16 11/16 |
3/8 7/16 |
5/8 5/8 |
0.190 0.190 |
47/64 47/64 |
1/2 1/2 |
7/8 7/8 |
0.10 0.10 |
| 16 PIB | 16 24 |
CAI-H16DP16 CAI-H16DP24 |
1.00 1.50 |
1.09 1.59 |
11/16 13/8 |
3/8 1/2 |
1/2 7/8 |
0.220 0.310 |
3/4 7/8 |
7/16 1/2 |
3/4 1 |
0.10 0.20 |
| 24 PIB | 24 | CAI-H24DP24 | 1.00 | 1.06 | 29/32 | 1/4 | 1/2 | 0.200 | 9/16 | 9/32 | 5/8 | 0.10 |
DIN
siab lub kaum sab xis 20 degree

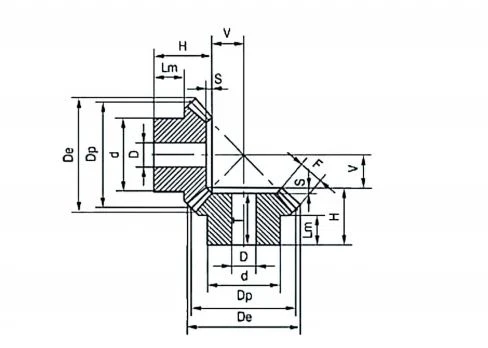

Hom A 1: 1
| M | Z | De | Dp | H | F | d | D | V | L | Lm | S |
| 15 | 16 20 25 30 |
26.1 32.1 39.6 47.1 |
24.0 30.0 37.5 45.0 |
18.9 20 23 25 |
6 10 10 12 |
20.3 22 28 30 |
8 10 10 12 |
7.10 7.40 11.09 13.35 |
18 21 22.5 |
12 8.5 12 12 |
2 2 2.5 |
| 2 | 16 20 25 30 |
34.8 42.8 52.8 62.8 |
32.0 40.0 50.0 60.0 |
23.5 25 28 30 |
8 12 14 16 |
25.3 32 40 50 |
10 10 12 12 |
9.50 10.78 14.28 17.78 |
22 25 27 |
14 12 12.3 12.8 |
3 3 3 |
| 2.5 | 16 20 25 30 |
43.5 53.5 66.0 78.5 |
40.0 50.0 62.5 75.0 |
28.1 30.5 33.5 35.5 |
10 12 15 18 |
30.3 40 50 55 |
12 12 15 15 |
11.90 15.43 19.48 23.63 |
27 30 32 |
15 16 16 16 |
3.5 3.5 3.5 |
| 3 | 16 20 25 30 |
52.2 64.2 79.2 94.2 |
48.0 60.0 75.0 90.0 |
31.7 35 38 40 |
12 18 20 22 |
40.3 45 55 60 |
15 15 15 20 |
14.30 16.00 22.00 28.00 |
31 34 36 |
18 13.6 16 17 |
4 4 4 |
| 3.5 | 16 20 25 30 |
60.9 74.9 92.4 109.9 |
56.0 70.0 87.5 105.0 |
36.4 40.5 43.5 48 |
14 22 26 30 |
45.3 55 65 70 |
15 15 20 20 |
16.60 18.13 23.97 30.02 |
36 39 43.5 |
20 17 18 19 |
4.5 4.5 4.5 |
| 4 | 16 20 25 30 |
69.6 85.6 105.6 125.6 |
64.0 80.0 100.0 120.0 |
44.3 43 45 48 |
15 25 28 32 |
50.3 60 70 80 |
15 18 20 25 |
19.70 20.74 28.50 35.67 |
38 40 43 |
25 18 18 16 |
5 5 5 |
| 4.5 | 16 20 25 30 |
78.3 96.3 118.8 141.3 |
72.0 90.0 112.5 135.0 |
46.3 48 50 53 |
18 28 32 35 |
55.3 65 75 90 |
18 20 20 25 |
21.70 23.41 31.76 40.82 |
42 44 47 |
25 18 18 17 |
6 6 6 |
| 5 | 16 20 25 30 |
87.0 107.1 132.1 157.1 |
80.0 100.0 125.0 150.0 |
48.9 50.5 53.5 56.5 |
18 30 34 38 |
60.36 70 90 110 |
20 20 20 30 |
25.10 26.86 36.36 45.97 |
44 47 50 |
25 18.5 18 18 |
6.5 6.5 6.5 |

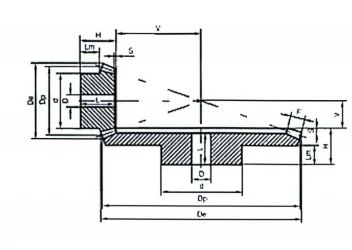

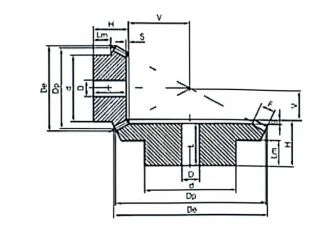

Hom A 1:2
| M | Z | De | Dp | H | F | d | D | V | L | Lm | S |
| 1.5 | 16 32 |
26.7 49.3 |
24 48 |
19.5 20 |
8 8 |
21 32 |
10 12 |
16.33 7.45 |
18 17 |
11.3 10 |
1.5 3 |
| 2 | 16 32 |
35.6 65.8 |
32 64 |
23 25 |
10 10 |
26 40 |
10 12 |
22.41 10.21 |
21 21 |
12.2 10 |
2 4 |
| 2.5 | 16 32 |
44.4 82.2 |
40 80 |
27.5 26 |
12 12 |
34 50 |
12 15 |
28.38 14.10 |
25 20 |
14.4 10 |
2.5 5 |
| 3 | 16 32 |
53.4 98.7 |
48 96 |
28 30 |
15 15 |
40 60 |
15 15 |
33.64 15.31 |
25 24 |
11.6 10 |
3 6 |
| 3.5 | 16 32 |
62.3 115.1 |
56 112 |
33.5 31 |
18 18 |
48 70 |
15 20 |
38.83 17.77 |
30 24 |
14.4 10 |
3.5 7 |
| 4 | 16 32 |
71.1 131.6 |
64 128 |
36 32 |
20 20 |
50 80 |
20 20 |
44.81 20.42 |
32 24 |
13.4 10 |
4 8 |
| 4.5 | 16 32 |
80.1 148.0 |
72 144 |
39.5 36 |
22 22 |
60 90 |
20 25 |
51 23.21 |
35 27 |
15.4 10 |
4.5 9 |
| 5 | 16 32 |
88.9 164.5 |
80 160 |
50 38 |
25 25 |
60 100 |
20 25 |
56.06 25.52 |
45 28 |
21.1 10 |
5 10 |

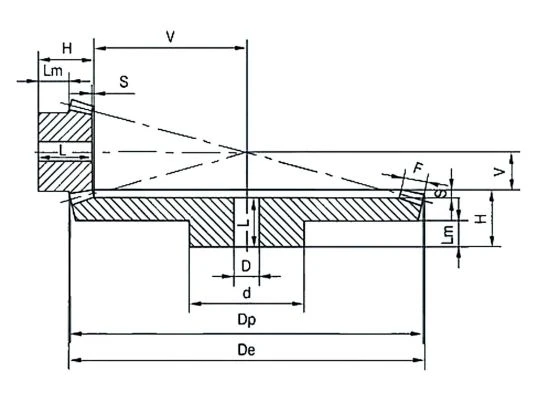

Hom A 1:3
| M | Z | De | Dp | H | F | d | D | V | L | Lm | S |
| 1.5 | 16 48 |
26.9 72.9 |
24 72 |
22 20 |
12 12 |
20 50 |
10 15 |
24.44 7.27 |
21 17 |
9.8 10 |
1 3 |
| 2 | 16 48 |
35.8 97.3 |
32 96 |
28.5 23 |
15 15 |
26 60 |
12 15 |
33.26 9.90 |
27 19 |
12.7 10 |
1.5 4 |
| 2.5 | 16 48 |
44.7 121.6 |
40 120 |
32 26.6 |
18 18 |
32 70 |
12 20 |
42.41 13.23 |
30 21 |
13 10 |
2 5 |
| 3 | 16 48 |
53.7 145.9 |
48 144 |
32 29 |
18 18 |
40 80 |
15 20 |
54.25 16.20 |
30 23 |
12.1 10 |
2 6 |
| 3.5 | 16 48 |
62.6 170.2 |
56 168 |
38 31 |
22 22 |
48 90 |
15 20 |
62.29 18.48 |
35.5 24 |
15 10 |
2.5 7 |
| 4 | 16 48 |
71.6 194.5 |
64 192 |
41.5 33 |
25 25 |
55 100 |
20 22 |
71.23 21.20 |
38.5 25 |
15.2 10 |
3 8 |
| 4.5 | 16 48 |
80.6 218.6 |
72 216 |
53 49 |
28 28 |
60 100 |
20 25 |
80.27 23.93 |
50 40 |
23.4 18 |
3 9 |
| 5 | 16 48 |
89.5 243.1 |
80 240 |
60 50 |
35 35 |
60 150 |
20 28 |
85.61 25.45 |
57 40 |
22.5 20 |
3 10 |
Hom A 1:4
| M | Z | De | Dp | H | F | d | D | V | L | Lm | S |
| 1.5 | 16 64 |
26.9 96.7 |
24 96 |
25 22.5 |
12 12 |
18 70 |
10 15 |
36.02 8.53 |
24 19 |
12.2 10 |
1 3 |
| 2 | 16 64 |
35.9 129.0 |
32 128 |
24 25 |
15 15 |
25 80 |
12 20 |
49.07 11.79 |
23 20 |
8.2 10 |
1 4 |
| 2.5 | 16 64 |
44.9 161.2 |
40 160 |
30.5 29 |
18 18 |
30 90 |
15 20 |
61.99 13.77 |
29 24 |
11.2 10 |
1.5 5 |
| 3 | 16 64 |
53.8 193.5 |
48 192 |
34 30 |
22 22 |
40 100 |
15 20 |
74.05 16.41 |
32 24 |
11 10 |
2 6 |
| 3.5 | 16 64 |
62.8 225.7 |
56 224 |
45 50 |
25 25 |
48 100 |
15 25 |
87.13 19.32 |
43 43 |
19.1 22 |
2 7 |
| 4 | 16 64 |
71.7 257.9 |
64 256 |
50 50 |
30 30 |
50 120 |
20 28 |
98.21 21.72 |
48 42 |
18.5 20 |
2 8 |
| 4.5 | 16 64 |
80.7 290.1 |
72 288 |
53 53 |
32 32 |
55 130 |
20 30 |
112.08 24.83 |
50.5 44 |
19 23 |
2.5 9 |
| 5 | 16 64 |
89.7 322.4 |
80 320 |
58 58 |
35 35 |
60 150 |
20 30 |
125.06 27.65 |
55.5 48 |
20.6 25 |
2.5 10 |
Cim npe nrov: Tshuag bore steel miter iav-a series, Tuam Tshoj Tshuag bore steel miter iav-a series manufacturers, lwm tus neeg, Hoobkas
