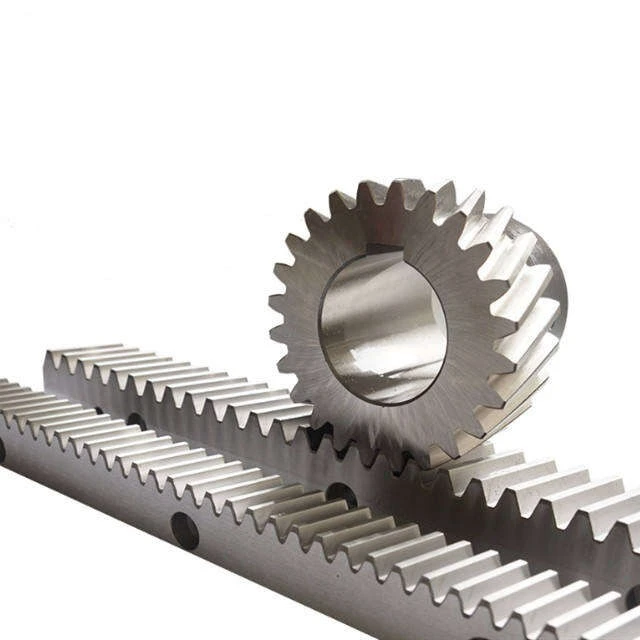

Standard Iav Rack

Muaj lwm yam module iav khib muaj, thiab kuj muaj CP lossis DP cov hniav muaj, Dej hiav txwv tuaj yeem tsim raws li koj cov duab kos.Feem ntau ntawm Ocean Standard Gear Rack raug xa tawm mus rau Tebchaws Europe txij li xyoo 2005. Feem ntau ntawm Ocean OEM cov neeg siv khoom xa cov duab kos thiab dej hiav txwv tsim raws li lawv cov duab kos, yog tias koj tsis muaj daim duab kos, Dej hiav txwv kuj tuaj yeem tsim raws li koj tus qauv.
Xa kev nug

Hangzhou Ocean Industry Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm cov iav khib hauv Suav teb. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.



Muaj lwm yam module iav khib muaj, thiab kuj muaj CP lossis DP cov hniav muaj, Dej hiav txwv tuaj yeem tsim raws li koj cov duab kos.Feem ntau ntawm Ocean Standard Gear Rack raug xa tawm mus rau Tebchaws Europe txij li xyoo 2005. Feem ntau ntawm Ocean OEM cov neeg siv khoom xa cov duab kos thiab dej hiav txwv tsim raws li lawv cov duab kos, yog tias koj tsis muaj daim duab kos, Dej hiav txwv kuj tuaj yeem tsim raws li koj tus qauv.



Parameter



Hloov Table

Modulus CP DP
0.39688 1.24682 64
0.5 1.57080 50.8
0.52917 1.66243 48
0.6 1.88496 42.33333
0.79375 2.49364 32
0.79577 2.5 31.91858
0.8 2.51327 31.75
1 3.14159 25.4
1.05833 3.32485 24
1.25 3.92699 20.32
1.27000 3.98982 20
1.5 4.71239 16.93333
1.59155 5 15.95929
1.58750 4.98728 16
2 6.28319 12.70
2.11667 6.64970 12
2.5 7.85398 10.16
2.54000 7.97965 10
3 9.42478 8.46667
3.17500 9.97456 8
3.18310 10 7.97965
4 12.56637 6.35
4.23333 13.29941 6
4.77465 15 5.31976
5 15.70796 5.08
5.08000 15.95929 5
6 18.84956 4.23333
6.35000 19.94911 4
6.36620 20 3.98982
8 25.13274 3.175
8.46667 26.59882 3
10 31.41593 2.54

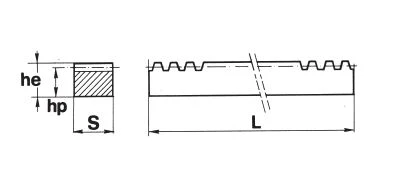

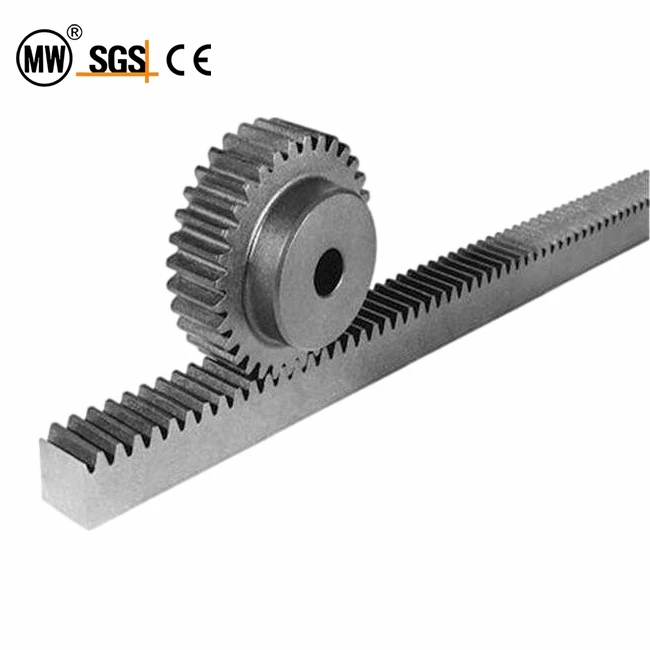

Standard Gear Rack1

Dentatura diritta Ncaj hniav GeradeVerzahnung Cov hniav droite Dentado derecho
Angolo pressione 20 degree Lub kaum sab xis ntawm siab 20 degree Eingriffswinskel 20 degree Lub kaum sab xis ntawm kev nias 20 degree Angulode presión 20 degree
MaterialeC45E UNI EN 10083-1 Khoom siv C45E UNI EN 10083-1 WerkstoffC45E UNI EN 10083-1 Matière C45E UNI EN 10083-1 Khoom siv C45E UNI EN 10083-1

Mod. hp ua nws x s L
500 1000 2000 3000
Cod. Kg Cod. Kg Cod. Kg Cod. Kg
1 140 15 x 15 TIAB SA 26050 820 TIAB SA 26100 1,500 TIAB SA 26200 3,100 TIAB SA 26300 4,900
15 155 17 x 17 TIAB SA 27050 1,000 TIAB SA 27100 2,000 TIAB SA 27200 4,000 TIAB SA 27300 6,100
2 180 20 x 20 TIAB SA 28050 1,400 TIAB SA 28100 2,700 TIAB SA 28200 5,400 TIAB SA 28300 8,400
25 225 25 x 25 TIAB SA 29050 2,100 TIAB SA 29100 4,300 TIAB SA 29200 8,600 TIAB SA 29300 11,900
3 270 30 x 30 TIAB SA 30050 3,100 TIAB SA 30100 6,300 TIAB SA 30200 12,500 TIAB SA 30300 18,600
4 18 22 x 22 TIAB SA 37050 1,400 TIAB SA 37100 3,250 TIAB SA 37200 6,800
4 210 25 x 25 TIAB SA 36050 1,800 TIAB SA 36100 3,650 TIAB SA 36200 7,300 TIAB SA 36300 10,900
4 260 30 x 30 TIAB SA 33050 3,050 TIAB SA 33100 6,000 TIAB SA 33200 11,900 TIAB SA 33300 18,100
4 360 40 x 40 TIAB SA 31050 5,500 TIAB SA 31100 11,100 TIAB SA 31200 22,000 TIAB SA 31300 31,300
5 450 50 x 50 TIAB SA 32050 8,300 TIAB SA 32100 17,500 TIAB SA 32200 34,600 TIAB SA 32300 45,300
6 54 60 x 60 TIAB SA 34050 12,650 TIAB SA 34100 25,000 TIAB SA 34200 51,000
8 720 80 x 80 TIAB SA 39050 22,400 TIAB SA 39100 45,000 TIAB SA 39200 90,000

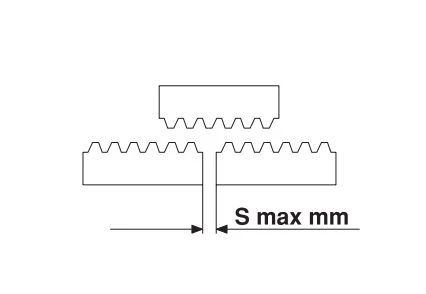

Standard Gear Rack2

Dati tecnici Technical specifications Technische Daten Donnees cov tswv yim Datos tecnicos
Mod. Passo / Pitch
Teilung / Pas
Paso		 S L
500 1000 2000 3000
Z Lr Z Lr Z Lr Z Lr
1 31,416 5 159 49,951 319 100,217 637 200,120 955 300,023
15 47,124 6 106 49,951 213 100,374 425 200,277 637 300,180
2 62,832 6 80 50,266 160 100,531 319 200,434 478 300,337
25 78,540 7 64 50,266 128 100,531 255 200,277 382 300,023
3 94,248 8 53 49,951 107 100,845 213 200,748 319 300,651
4 125,664 8 40 50,266 80 100,531 160 201,062 239 300,337
5 157,080 10 32 50,266 64 100,531 128 201,062 191 300,023
6 188,496 10 27 50,894 54 101,788 107 201,691
8 251,328 10 20 50,266 40 100,531 80 201,062



Standard Gear Rack3

Qhov siab 12.566 mm Pitch 12.566 mm Qhov siab 12.566 mm Pas 12.566 mm Paso 12.566 mm
Modulo=4 Module=4 Modul=4 Modul=4 Modulo=4
Dentatura diritta Ncaj hniav GeradeVerzahnung Cov hniav droite Dentado derecho
Angolo pressione 20 degree Lub kaum sab xis ntawm siab 20 degree Eingriffswinskel 20 degree Lub kaum sab xis ntawm kev nias 20 degree Lub kaum sab xis ntawm 20 degree
Khoom siv Khoom siv Werkstoff Matiere Khoom siv
C45E UNI EN 10083-1 C45E UNI EN 10083-1 C45E UNI EN 10083-1 C45E UNI EN 10083-1 C45E UNI EN 10083-1
Kev piav qhia ntawm superficiale: Kev kho deg: Cov kev pab cuam: Kev piav qhia ntawm qhov chaw: Tratamiento superficial:
Zincatura Zinc plating Verzinken Zingage Cincado



Code CP Module L No. Cov hniav B A0 A1 D I No.of Holes Ntsia hlau A Φd1 ΦD E f Fta kN KG
CP-05005-JIS1 5 1. 5915 500 100 15 20 18.41 40 140 4 M5 8 6 10 6 1.5 0.59 1.1
CP-05005-JIS1-N 5 1. 5915 500 100 15 20 18.41 * * * * * * * * 1.5 0.59 1. 1
CP-05010-J1S1-N 5 1. 5915 1000 200 15 20 18.41 * * * * * * * * 1.5 0.59 2.1
CP-10005-JIS1 10 3.1831 500 50 30 35 31.82 40 140 4 M10 14 11 17.5 10.8 1.5 2.38 3.7
CP- 10005-J1S1-N 10 3.1831 500 50 30 35 31.82 * * * * * * * * 1.5 2.38 3.7
CP- 10010-J1S1-N 10 3.1831 1000 100 30 35 31.82 * * * * * * * * 1.5 2.38 7.5

Code CP Module L No. Cov hniav B A0 A1 D I No.of Holes Ntsia hlau A Φd1 ΦD E f Fta kN KG
CP-05005-JIS1 5 1. 5915 500 100 15 20 18.41 40 140 4 M5 8 6 10 6 1.5 0.59 1.1
CP-05005-JIS1-N 5 1. 5915 500 100 15 20 18.41 * * * * * * * * 1.5 0.59 1. 1
CP-05010-J1S1-N 5 1. 5915 1000 200 15 20 18.41 * * * * * * * * 1.5 0.59 2.1
CP-10005-JIS1 10 3.1831 500 50 30 35 31.82 40 140 4 M10 14 11 17.5 10.8 1.5 2.38 3.7
CP- 10005-J1S1-N 10 3.1831 500 50 30 35 31.82 * * * * * * * * 1.5 2.38 3.7
CP- 10010-J1S1-N 10 3.1831 1000 100 30 35 31.82 * * * * * * * * 1.5 2.38 7.5

Code CP Module L No. Cov hniav B A0 A1 D I No.of Holes Ntsia hlau A Φd1 ΦD E f Fta kN KG
CP-05005-JIS1 5 1. 5915 500 100 15 20 18.41 40 140 4 M5 8 6 10 6 1.5 0.59 1.1
CP-05005-JIS1-N 5 1. 5915 500 100 15 20 18.41 * * * * * * * * 1.5 0.59 1. 1
CP-05010-J1S1-N 5 1. 5915 1000 200 15 20 18.41 * * * * * * * * 1.5 0.59 2.1
CP-10005-JIS1 10 3.1831 500 50 30 35 31.82 40 140 4 M10 14 11 17.5 10.8 1.5 2.38 3.7
CP- 10005-J1S1-N 10 3.1831 500 50 30 35 31.82 * * * * * * * * 1.5 2.38 3.7
CP- 10010-J1S1-N 10 3.1831 1000 100 30 35 31.82 * * * * * * * * 1.5 2.38 7.5
