Hangzhou Ocean Industry Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm gl hom couplings hauv Suav teb. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.

GL Hom Couplings yog ib qho kev sib txuas uas siv dav hauv kev siv tshuab uas tsim los nrog kev ua haujlwm ntev thiab kev ua haujlwm siab, thiab qhov saum npoo yog machined thiab phosphated los txhim kho durability thiab precision. Tsis tas li ntawd, cov couplings no yuav tsum tau ua kom muaj zog sib npaug kom ntseeg tau tias lawv qhov kev ua tau zoo thaum qhov kev sib hloov ceev mus txog ib nrab ntawm qhov kev txwv kev ua haujlwm. Nws kuj muaj nyob rau hauv ntau hom kev tsim kho, xws li cov menyuam saw txuas thiab splined rigid ncej couplings, thiab lwm yam.

Cov menyuam saw txuas feem ntau muaj ob qhov sib npaug sib npaug thiab ob npaug -kab cov hlua hlua, uas tso cai rau nws ua haujlwm ntawm qhov nrawm qis, hnyav hnyav thiab kub, thiab muaj peev xwm them nyiaj. Splined rigid ncej couplings yog tsim rau cov kev siv uas yuav tsum tau muaj siab torque kis tau tus mob.

Tsis tas li ntawd, peb lub tuam txhab kuj tuaj yeem hloov kho raws li qhov xav tau ntawm peb cov neeg siv khoom, thiab cov couplings no tau siv dav hauv ntau yam khoom siv, xws li twj, kiv cua, thiab lwm yam kev sib kis, kom muaj kev sib txuas zoo thiab txhim khu kev qha.

Hauv cov ntsiab lus, GL Hom Couplings yog siab -kev ua tau zoo, ntau yam txuas txuas uas tsim nyog rau ntau hom kev lag luam thiab muaj peev xwm ua tau raws li cov kev xav tau thiab cov qauv ntawm cov neeg siv khoom sib txawv.

Parameter

Cov khoom lag luam

Cov qauv	Hom Series	Sizeb Range
ANSI	GL	GL44x40-GL124x118
DIN	GL	GL112x100-GL315x300

ANSI

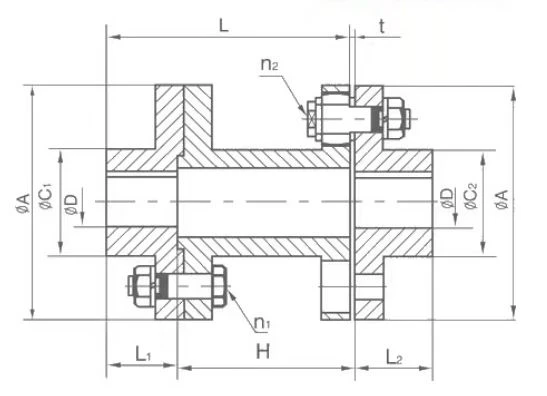

ANSI GL Type Couplings

Catalog AXH	Yam Tseem Ceeb						Npog		n		Max Torque (Nyob hauv -Lb)	Max kiv puag ncig (rPm)	wb lbs
Catalog AXH	L	L1	C1	L2	C2	t	tus tsav	Max	M1	n2	Max Torque (Nyob hauv -Lb)	Max kiv puag ncig (rPm)	wb lbs
wb 44x40	51/4	17/16	2	19/16	2	0.118	-	11/8	4	4	292	4000	11.4
wb 50x40	57/16	15/8	23/16	13/4	23/16	0.118	-	11/4	4	4	646	4000	15.4
wb 55x40	511/16	17/8	23/16	2	213/16	0.118	-	11/2	6	6	1150	4000	20.4
wb 55x55	71/4	17/8	23/16	2	213/16	0.118	-	11/2	6	6	1150	4000	21.6
wb 63x40	515/16	21/16	31/8	23/16	31/8	0.118	-	13/4	8	8	1770	4000	26.4
wb 63x55	71/2	21/16	31/8	23/16	31/8	0.118	-	13/4	8	8	1770	4000	28.0
wb 71x40	63/16	23/8	31/2	21/2	31/2	0.118	-	2	8	8	2036	3500	34.2
wb 71x55	73/4	23/8	31/2	21/2	31/2	0.118	-	2	8	8	2036	3500	36.1
wb 71x63	95/16	23/8	31/2	21/2	31/2	0.118	-	2	8	8	2036	3500	37.9
wb 79x55	8	25/8	4	213/16	4	0.157	11/16	23/16	8	8	3894	3200	55.1
wb 79x71	99/16	25/8	4	213/16	4	0.157	11/16	23/16	8	8	3894	3200	57.3
wb 79x79	113/16	25/8	4	213/16	4	0.157	11/16	23/16	8	8	3894	3200	59.6
wb 88x55	83/8	3	43/8	31/8	43/8	0.157	11/16	21/2	8	8	4524	2850	69.9
wb 88x71	915/16	3	43/8	31/8	43/8	0.157	11/16	21/2	8	8	4524	2850	72.8
wb 88x87	111/2	3	43/8	31/8	43/8	0.157	11/16	21/2	8	8	4524	2550	75.7
GL 100x55	83/4	33/8	5	31/2	5	0.157	3/4	23/4	8	8	7523	2550	102
wb 100x71	105/16	33/8	5	31/2	5	0.157	3/4	23/4	8	8	7523	2550	106
wb 100x87	117/8	33/8	5	31/2	5	0.157	3/4	23/4	8	8	7523	2550	110
GL 100x100	137/16	33/8	5	31/2	5	0.157	3/4	23/4	8	8	7523	2550	114
wb 110x71	1011/16	33/4	51/2	4	51/2	0.157	13/16	31/8	8	8	13275	2300	143
wb 110x87	121/4	33/4	51/2	4	51/2	0.157	13/16	31/8	8	8	13275	2300	148
GL 110x100	137/8	33/4	51/2	4	51/2	0.157	13/16	31/8	8	8	13275	2300	153
GL 110x118	157/16	33/4	51/2	4	51/2	0.157	13/16	31/8	8	8	13275	2300	158
wb 124x71	113/16	41/4	61/4	43/8	61/4	0.157	11/4	31/2	10	10	19470	2050	186
wb 124x87	123/4	41/4	61/4	43/8	61/4	0.157	11/4	31/2	10	10	19470	2050	193
GL 124x100	143/8	41/4	61/4	43/8	61/4	0.157	11/4	31/2	10	10	19470	2050	200
GL 124x118	1529/32	41/4	61/4	43/8	61/4	0.157	11/4	31/2	10	10	19470	2050	200

DIN

DIN GL Type Couplings

Catalog AxX	Qhov loj me						Npog		n1	n2	Max Torque (Nm)	Max kiv puag ncig (rpm)	Lub sijhawm ntawm Inertia (kg.㎠)	G (kg)
	L	L1	L2	C1	C2	t	polot	max
GL-112x100 GL-125x100 GL-140x100 GL-140x140 GL-160x100	134 139 144 184 150	37 42 47 47 53	40 45 50 50 56	50 56 71 71 80	50 56 71 71 80	3 3 3 3 3	11 11 11 11 11	28 32 38 38 45	4 4 6 6 8	4 4 6 6 8	33 73 130 130 200	4000 4000 4000 4000 4000	79 140 220 230 380	5.53 7.47 9.9 10.5 12.8




GL-160x140 GL-180x100 GL-180x140 GL-180x180 GL-200x140	190 157 197 237 203	53 60 60 60 67	56 63 63 63 71	80 90 90 90 100	80 90 90 90 100	3 3 3 3 4	11 11 11 11 18	45 50 50 50 56	8 8 8 8 8	8 8 8 8 8	200 230 230 230 440	4000 3500 3500 3500 3200	390 620 630 640 1200	13.6 16.6 17.5 18.4 26.7




GL-200x180 GL-200x220 GL-224x140 GL-224x180 GL-224x220	243 283 212 252 292	67 67 76 76 76	71 71 80 80 80	100 100 112 112 112	100 100 112 112 112	4 4 4 4 4	18 18 18 18 18	56 56 63 63 63	8 8 8 8 8	8 8 8 8 8	440 440 510 510 510	3200 3200 2850 2850 2850	1300 1300 2000 2000 2000	27.8 28.9 33.9 35.3 36.7




GL-250x140 GL-250x180 GL-250x220 GL-250x260 GL-280x180	222 262 302 342 272	86 86 86 86 96	90 90 90 90 100	125 125 125 125 140	125 125 125 125 140	4 4 4 4 4	20 20 20 20 30	71 71 71 71 80	8 8 8 8 8	8 8 8 8 8	850 850 850 850 1500	2550 2550 2550 2550 2300	3600 3700 3700 3800 6200	49.6 51.5 53.4 55.3 69.4




GL-280x220 GL-280x260 GL-280x300 GL-315x180 GL-315x220	312 352 392 284 324	96 96 96 108 108	100 100 100 112 112	140 140 140 160 160	140 140 140 160 160	4 4 4 4 4	30 30 30 32 32	80 80 80 90 90	8 8 8 10 10	8 8 8 10 10	1500 1500 1500 2200 2200	2300 2300 2300 2050 2050	6300 6400 6500 10000 10000	71.8 74.2 76.6 90.6 93.7




GL-315x260 GL-315x300	364 404	108 108	112 112	160 160	160 160	4 4	32 32	90 90	10 10	10 10	2200 2200	2050 2050	11000 11000	96.8 99.8
