Hangzhou Ocean Industry Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm gez hom couplings hauv Suav teb. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.

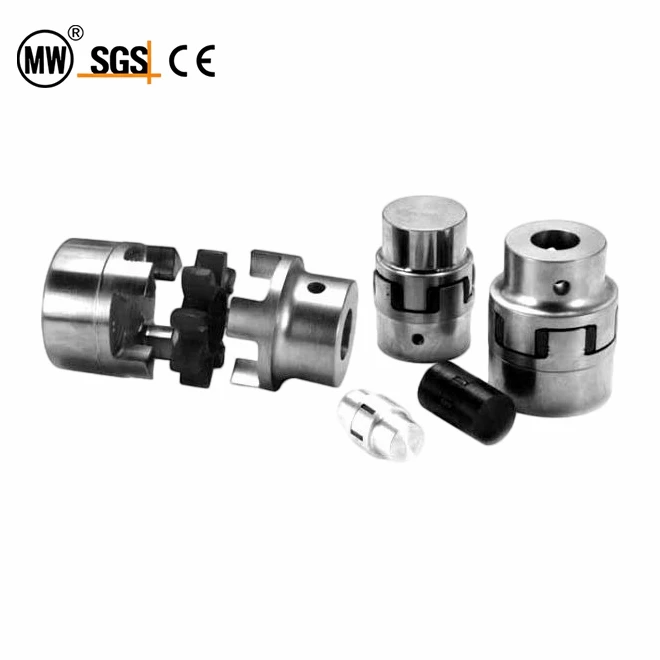

GEZ Hom Couplings yog cov khoom lag luam loj rau DIN kev ua lag luam, haum rau ntau yam kev lag luam. Tus tsim ntawm qhov sib txuas no yog txhawm rau ua kom tau raws li qhov xav tau ntawm Pachislot thiab Pachinko tshuab kev lag luam, thiab nws cov kev sib cuag tuaj yeem hloov pauv tau nrog ob kab GEZD txuas. Tsis tas li ntawd, qhov tsis tshua muaj zog quab yuam hom kev sib cuag no ua rau kev ua haujlwm ntawm lub connector yooj yim dua.

Nyob rau hauv cov lus piav qhia ntawm cov khoom tshwj xeeb, GEZ coupling muaj qhov sib nrug ntawm 1.25 millimeters thiab txais yuav tus qauv crimping detachable. Nws cov ntaub ntawv muaj xws li tooj liab alloy, reflow kho, thiab ua raws li UL94V-0 nplaim retardant ntsuam xyuas. Cov yam ntxwv no ua rau GEZ cov khoom sib txuas ua tau zoo hauv kev sib txuas hluav taws xob thiab lub zog siv tshuab, ua rau lawv tsim nyog rau cov ntawv thov uas xav tau kev ntseeg siab thiab ua haujlwm ntev.

Hauv cov ntsiab lus, GEZ Hom Couplings yog ntau yam khoom siv sib txuas thiab txhim khu kev qha siv dav hauv ntau qhov chaw lag luam, tshwj xeeb tshaj yog nyob rau hauv cov xwm txheej uas xav tau kev sib txuas hluav taws xob ceev thiab yooj yim.

Parameter

Cov khoom lag luam

Cov qauv	Hom Series	Qhov Loj
DIN	GEZ	TIAB SA 42-GEZ90

DIN GEZ Type Couplings

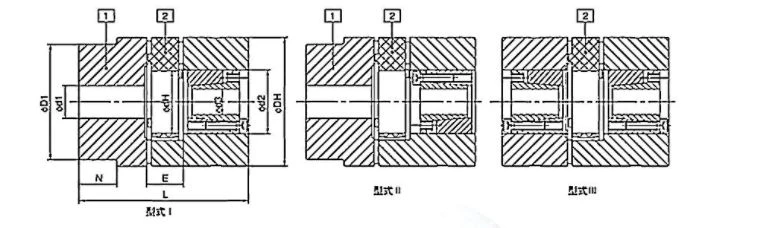

catalog	Tus qauv kaw lub tes tsho nthuav dav (d3xd2)	Qhov loj me							Ncej qhov taub d1		Rated torque (N.m)		Qhov ceev tshaj plaws (rpm)	Lub sijhawm ntawm inertia (kg cm²)	qhov hnyav (kg)
		DH	D1	dH ua	E	L	L1	N	Min	Max	SHA 92	SHA 96
ZPO-42	CL25X50F81	95	85	46	26	124	48	28	22	50	265	450	5600	32.66	2.57
	wb 28x55f81													32.40	2.5
	wb 30x55f81													32.34	2.48
ZPO-48	CL25X50F81	105	95	51	28	132	48	32	22	55	310	525	5000	49.29	3.22
	wb 28x55f81													49.03	3.15
	wb 30x55f81													48.97	3.12
	wb 32x60f81													48.63	3.06
	wb 35x60f81													48.50	3.01
ZPO-55	wb 32x60f81	120	110	60	30	153	58	37	28	65	410	685	4400	99.37	4.82
	wb 35x60f81													99.23	4.77
	wb 38x65f81													98.35	4.64
	wb 40x65f81													98.20	4.61
	wb 42x75f81													97.78	4.59
	wb 45x75f81													97.43	4.52
ZPO-65	wb 42x75f81	135	115	68	35	168	58	47	38	75	625	940	3900	126.00	5.23
	wb 45x75f81													125.65	5.15
ZPO-75	wb 42x75f81	160	135	80	40	183	58	53	38	85	1280	1920	3300	256.17	7.74
	wb 45x75f81													255.81	7.66
	wb 48x80f81													254.59	7.53
	CL50X80F81													254.26	7.47
ZPO-90	CL50X80F81	200	160	100	45	203	58	62	45	95	2400	2430	2600	651.24	12.47
	wb 55x85f81													649.42	12.27
	wb 60x90f81													647.12	12.06
	wb 65x95f81													644.27	11.83
