Hangzhou Ocean Industry Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm galvanized roller saw hauv Suav teb. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Hangzhou Ocean Industry Co., Ltd. yog cov chaw tsim khoom thiab feem ntau ntawm peb cov khoom raug xa tawm mus rau Tebchaws Europe txij li xyoo 2005.
Peb cov kev txuas tshwj xeeb thiab cov saw hlau ua liaj ua teb haum rau txhua qhov kev ua haujlwm hnyav. Lawv yog ua los ntawm cov hlau resistant alloysteel nrog anti-corrosioncoating thiab yog sib xws nrog kev cai K, F, CA txuas rau sau qoob, tsheb laij teb thiab balers.High tensile zog rau lub neej kev pab ntev, saj zawg zog OEM & ODM rau ntiaj teb no ua liaj ua teb machinery wholesalers.
Parameter
Feem ntau ntawm peb cov neeg siv khoom OEM xa peb daim duab thiab peb yuav tsim raws li lawv daim duab. Koj tuaj yeem xa peb cov duab kos los ntawm e-mail thiab ces peb tus engineer yuav muab kev pab. Yog tsis muaj duab kos, qauv kuj OK. Catalog kuj OK.
Drawings thiab cov ntaub ntawv parameter

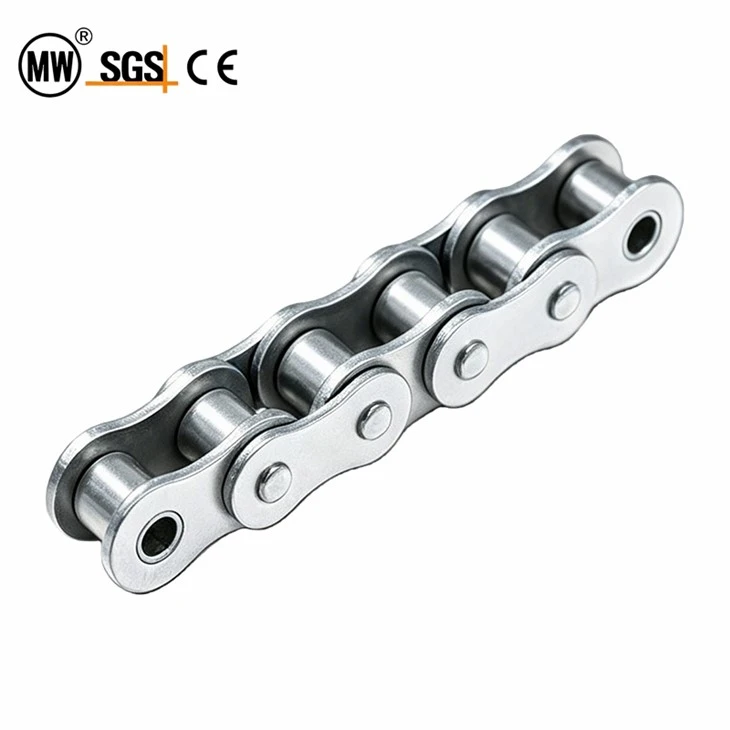

Galvanized Roller Chain ua raws li ISO, ASME / ANSI, DIN, JIS thiab lwm cov qauv thoob ntiaj teb, feem ntau suav nrog A series galvanized roller saw, B series galvanized roller saw, hnyav load series galvanized roller saw thiab lwm yam customized series.
Siv high-cov ntaub ntawv zoo alloy steel thiab siab heev CNC machining, kev kho cua sov ntxiv rau galvanizing tshuab, cov khoom muaj cov yam ntxwv zoo heev los tiv thaiv-corrosion, siab tensile zog thiab siab qaug zog. Lub zog tensile ncav cuag ntau dua 11 npaug ntawm qhov tsawg kawg nkaus tensile lub zog ntawm ISO tus qauv thiab lub zog qaug zog nce mus txog ntau dua 1.1 npaug ntawm qhov tsawg kawg nkaus dynamic load zog ntawm ISO tus qauv. Ob txoj kev xaiv saum npoo: electro galvanized & kub-dip galvanized rau txawv los tiv thaiv- xeb xav tau.
Cov khoom siv dav siv hauv engineering machinery, kev ua liaj ua teb machinery, lub teeb conveyor cov cuab yeej thiab lwm yam kev lag luam, xa lub zog rau txhua yam ntawm cov tshuab thiab cov chaw nyob rau hauv cov dej ntub dej los yog sab nraum zoov ua haujlwm.
| Chain No. | P (mm) | d1 max (mm) | b 1 min (hli) | d2 max (mm) | L max (mm) | Lc max (mm) | H2 max (mm) | T max (mm) | Q min (kN/lbf) | q (kg / m) |
| * 25 ZPO | 6.35 | 3.3 | 3.18 | 2.31 | 7.9 | 8.4 | 6 | 0.8 | 3.50/795 | 0.15 |
| * 35 ZPO | 9.525 | 5.08 | 4.77 | 3.58 | 12.4 | 13.17 | 9 | 1.3 | 7.90/1795 | 0.33 |
| 41 ZPO | 12.7 | 7.77 | 6.25 | 3.58 | 13.75 | 15 | 9.91 | 1.3 | 6.67/1516 | 0.41 |
| 40 ZPO | 12.7 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12 | 1.5 | 14.10/3205 | 0.62 |
| 50 ZPO | 15.875 | 10.16 | 9.4 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 22.20/5045 | 1.02 |
| 60 ZPO | 19.05 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18 | 2.42 | 31.80/7227 | 1.5 |
| 80 ZPO | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 35 | 24 | 3.25 | 56.70/12886 | 2.6 |
| 100 ZPO | 31.75 | 19.05 | 18.9 | 9.53 | 40.4 | 44.7 | 30 | 4 | 88.50/20114 | 3.91 |
| 120 ZPO | 38.1 | 22.23 | 25.22 | 11.1 | 50.3 | 54.3 | 35.7 | 4.8 | 127.00/28864 | 5.62 |
| 140 ZPO | 44.45 | 25.4 | 25.22 | 12.7 | 54.4 | 59.6 | 41 | 5.6 | 172.40/39782 | 7.5 |
| 160 ZPO | 50.8 | 28.58 | 31.55 | 14.27 | 64.8 | 69.6 | 47.8 | 6.4 | 226.80/51545 | 10.1 |
| 04 ZPO | 6 | 4 | 2.8 | 1.85 | 6.8 | 7.8 | 5 | 0.6 | 3.00/682 | 0.11 |
| 05 ZPO | 8 | 5 | 3 | 2.31 | 8.2 | 8.9 | 7.1 | 0.8 | 5.00/1136 | 0.2 |
| #06 PAB | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.2 | 1.3 | 9.00/2045 | 0.41 |
| 08 ZPO | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 18.00/4091 | 0.69 |
| 10 ZPO | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.7 | 22.40/5091 | 0.93 |
| 12 ZPO | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24.2 | 16 | 1.85 | 29.00/6591 | 1.15 |
| 16 ZPO | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 37.4 | 21 | 4.15/3.1 | 60.00/13636 | 2.71 |
| 20 ZPO | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 4.5/3.5 | 95.00/21591 | 3.7 |
| 24 ZPO | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 160.00/36364 | 7.1 |
| 28 ZPO | 44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 200.00/45455 | 8.5 |
| 32 ZPO | 50.8 | 29.21 | 30.99 | 17.81 | 66 | 71 | 42 | 7.0/6.0 | 250.0/56818 | 10.25 |
FAQ
Q: Lub luag haujlwm tseem ceeb ntawm kev kho galvanized yog dab tsi?
A: Zinc txheej muab sijhawm ntev - tiv thaiv - xeb tiv thaiv hauv qhov chaw ntub dej.
Q: Puas yog galvanization tsis muaj zog ntawm cov saw hlau thauj khoom?
A: Kev tswj cua sov nruj kom ntseeg tau tias lub zog tensile tseem nyob tsis hloov.
Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog Hoobkas.
Q: Koj lub sijhawm xa khoom thiab xa khoom ntev npaum li cas?
A: 1.Sample Lead-times: feem ntau 10 hnub ua haujlwm.
2.Production Lead-times: 20-40 hnub ua haujlwm tom qab tau txais koj cov nyiaj tso cia.
