Hangzhou Dej hiav txwv kev lag luam Co., Ltd. yog ib tug ua manufacturers thiab lwm tus neeg ntawm kc saw couplings sprocket nyob rau hauv Suav teb. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
KC Chain Couplings Sprockets yog ib qho khoom siv kis tau los ntawm ob kab kab rau cov menyuam saw thiab ob lub sprockets, uas nws lub luag haujlwm tseem ceeb yog txuas thiab disassemble. Cov coupler no muaj cov yam ntxwv ntawm kev yooj yim, kev ua tau zoo, yooj yim installation thiab disassembly, thiab muaj qhov zoo nkauj zoo nkauj.
Kev tsim ntawm KC Chain Couplings Sprockets suav nrog txhuas npog los tiv thaiv cov plua plav nkag mus thiab tiv thaiv cov roj nplua nyeem, yog li txuas ntxiv lub neej kev pabcuam ntawm cov saw txuas. Tsis tas li ntawd, cov couplers no kuj muaj qhov hloov tau yooj yim, muaj zog xa hluav taws xob muaj peev xwm, thiab kav ntev.
Hais txog cov khoom siv, cov qauv sib txawv ntawm KC Chain Couplings Sprockets yuav siv cov khoom sib txawv, xws li steel C45 lossis 1045 / carbon steel. Cov couplers no tuaj yeem hloov kho kom tau raws li cov kev xav tau tshwj xeeb, xws li qhov sib txawv ntawm qhov sib txawv thiab lub peev xwm torque.
KC series sprocket coupler yog dav siv nyob rau hauv ntau yam kev sib txuas lus tshuab los txuas lub tsav ncej thiab lub zog tsav, tso cai rau lawv tig ua ke kom xa cov torque. Cov couplers no haum rau ntau yam kev thov, nrog rau cov tshuab textile, kiv cua, tshuab ua pa, thiab tshuab luam ntawv.
Nyob rau hauv cov ntsiab lus, KC Chain Couplings Sprockets yog ib tug npaum thiab txhim khu kev qha kis tau tus mob ntaus ntawv haum rau ntau yam kev siv uas yuav tsum tau siab torque thiab durability. Nws tus qauv tsim qhia txog kev yooj yim thiab yooj yim ntawm kev saib xyuas, thaum muab kev tiv thaiv ntxiv los ntawm lub hau txhuas.
Parameter
Yam khoom
| Standards Series | Hom | Qhov Loj |
| ANSI | SB-KC | KC-3012 to KC-12022 |
| FB-KC | FB-KC -3012 to FB-KC -6022 |

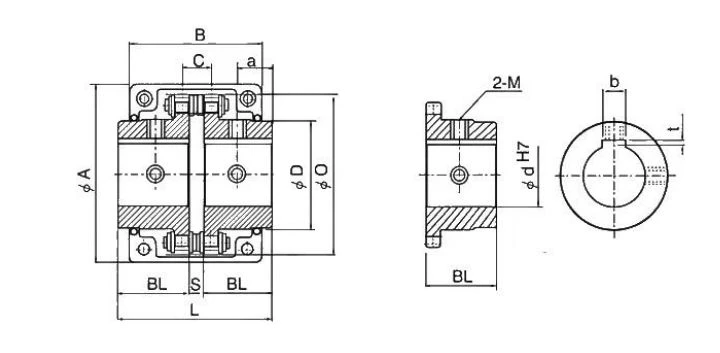

SB-KC
| Hom kev sib txuas | Chain Hom | Npog | Dimension | Rated Torque (lb-in) |
Wt Lbs |
Dia. ntawm Cover | ||||||||
| Min | Max | L | BL | S | d | O | C | A | B | Wt Lbs | ||||
| KC-3012 | 06B-2X12 | 1/2 | 5/8 | 29/16 | 13/16 | 0.204 | 13/8 | 125/32 | 0.402 | 4.66 | 0.8 | 223/32 | 21/2 | 0.62 |
| KC-4012 | 40-2X12 | 1/2 | 7/8 | 31/8 | 17/16 | 0.291 | 13/8 | 27/16 | 0.567 | 20.40 | 1.6 | 31/32 | 227/32 | 0.62 |
| KC-4014 | 40-2X14 | 1/2 | 11/8 | 31/8 | 17/16 | 0.291 | 121/32 | 223/32 | 0.567 | 38.48 | 2.2 | 35/16 | 231/32 | 0.82 |
| KC-4016 | 40-2X16 | 9/16 | 11/4 | 37/16 | 19/16 | 0.291 | 131/32 | 31/32 | 0.567 | 65.70 | 2.8 | 35/8 | 231/32 | 0.82 |
| KC-5014 | 50-2X14 | 9/16 | 13/8 | 315/16 | 125/32 | 0.382 | 21/8 | 33/8 | 0.713 | 120.20 | 4.51 | 4 | 311/32 | 1.0 |
| KC-5016 | 50-2X16 | 5/8 | 19/16 | 315/16 | 125/32 | 0.382 | 27/16 | 321/32 | 0.713 | 194.40 | 5.5 | 411/32 | 311/32 | 1.2 |
| KC-5018 | 50-2X18 | 5/8 | 13/4 | 315/16 | 125/32 | 0.382 | 23/4 | 43/16 | 0.713 | 308.40 | 7.8 | 413/16 | 311/32 | 1.6 |
| KC-6018 | 60-2X18 | 3/4 | 23/16 | 47/8 | 23/16 | 0.453 | 311/32 | 5 | 0.898 | 804.20 | 12.7 | 519/32 | 41/8 | 2.5 |
| KC-6020 | 60-2X20 | 3/4 | 23/8 | 47/8 | 23/16 | 0.453 | 315/16 | 515/32 | 0.898 | 1257.4 | 16.0 | 61/4 | 41/8 | 3.3 |
| KC-6022 | 60-2X22 | 3/4 | 225/32 | 47/8 | 23/16 | 0.453 | 411/32 | 531/32 | 0.898 | 1869.0 | 21.4 | 65/8 | 419/32 | 3.7 |
| KC-8018 | 80-2X18 | 3/4 | 31/8 | 59/16 | 21/2 | 0.598 | 411/32 | 621/32 | 1.154 | 2840.6 | 26.1 | 71/2 | 51/16 | 5.2 |
| KC-8020 | 80-2X20 | 3/4 | 31/2 | 523/32 | 29/16 | 0.598 | 411/16 | 79/32 | 1.154 | 4098.0 | 33.0 | 81/4 | 513/32 | 5.9 |
| KC-8022 | 80-2X22 | 3/4 | 315/16 | 61/8 | 225/32 | 0.598 | 51/2 | 731/32 | 1.154 | 6823.4 | 41.6 | 87/8 | 513/32 | 7.4 |
| KC-10020 | 100-2X20 | 1 | 45/16 | 71/32 | 31/8 | 0.740 | 63/8 | 93/16 | 1 409 | 12925 | 68.0 | 111/16 | 61/32 | 9.5 |
| KC-12018 | 120-2X18 | 13/8 | 5 | 8 | 317/32 | 0.894 | 611/16 | 101/16 | 1.787 | 21514 | 96.9 | 121/32 | 71/8 | 12.8 |
| KC-12022 | 120-2X22 | 13/8 | 51/2 | 825/32 | 315/16 | 0.894 | 81/4 | 1131/32 | 1.787 | 4.9090 | 148.4 | 141/32 | 71/8 | 16.5 |
FB-KC
| Kev sib txuas | L | BL | S | BO | O | C | Ua tiav Bore |
| FB-KC-3012 | 29/16 | 13/16 | 0.204 | 13/8 | 125/32 | 0.402 | 9/16 5/8 |
| FB-KC-4012 | 31/8 | 17/16 | 0.291 | 13/8 | 27/16 | 0.567 | 9/16 5/8 11/16 3/4 13/16 7/8 |
| FB-KC-4014 | 31/8 | 17/16 | 0.291 | 121/32 | 223/32 | 0.567 | 11/16 3/4 13/16 7/8 15/16 1" 11/8 |
| FB-KC-4016 | 37/16 | 19/16 | 0.291 | 131/32 | 31/32 | 0.567 | 3/4 13/16 7/8 15/16 1" 11/8 3/16 11/4 |
| FB-KC-5014 | 315/16 | 125/32 | 0.382 | 21/8 | 33/8 | 0.713 | 13/16 7/8 15/16 1" 11/8 11/4 13/8 |
| FB-KC-5016 | 315/16 | 125/32 | 0.382 | 27/16 | 321/32 | 0.713 | 7/8 15/16 1" 11/8 13/16 11/4 13/8 11/2 19/16 |
| FB-KC-5018 | 315/16 | 125/32 | 0.382 | 23/4 | 43/16 | 0.713 | 13/16 11/4 13/8 11/2 19/16 15/8 13/4 |
| FB-KC-6018 | 47/8 | 23/16 | 0.453 | 311/32 | 5 | 0.898 | 19/16 15/8 13/4 2" 21/4 |
| FB-KC-6020 | 47/8 | 23/16 | 0.453 | 315/16 | 515/32 | 0.898 | 5/8 13/4 2" 21/4 23/8 |
| FB-KC-6022 | 47/8 | 23/16 | 0.453 | 411/32 | 531/32 | 0.898 | 17/8 2" 21/4 23/8 21/2 |
keyway & teem screws
| Bore Range | Lub rooj zaum | Bore Range |
| 1/2-9/16 | 1/8x1/16 | 10-24 |
| 5/8-7/8 | 3/16x3/32 | 1/4x3/8 |
| 15/16-11/4 | 1/4x1/8 | 5/16x3/8 |
| 15/16-13/8 | 5/16x5/32 | 5/16x3/8 |
| 17/16-13/4 | 3/8x3/16 | 3/8x1/2 |
| 113/16-21/4 | 1/2x1/4 | 1/2x5/8 |
| 25/16-23/4 | 5/8x5/16 | 5/6x3/4 |
