Hangzhou Dej hiav txwv kev lag luam Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm cov khoom siv lim dej txias hauv Suav teb. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Hangzhou Ocean Industry Co., Ltd. yog cov chaw tsim khoom thiab feem ntau ntawm peb cov khoom raug xa tawm mus rau Tebchaws Europe txij li xyoo 2005.
Peb cov kev txuas tshwj xeeb thiab cov saw hlau ua liaj ua teb haum rau txhua qhov kev ua haujlwm hnyav. Lawv yog ua los ntawm cov hlau resistant alloysteel nrog anti-corrosioncoating thiab yog sib xws nrog kev cai K, F, CA attachments rau sau, tsheb laij teb thiab balers.High tensile zog rau lub neej kev pab cuam ntev, saj zawg zog OEM & ODM rau ntiaj teb no ua liaj ua teb machinery wholesalers.
Parameter
Feem ntau ntawm peb cov neeg siv khoom OEM xa peb daim duab thiab peb yuav tsim raws li lawv daim duab. Koj tuaj yeem xa peb cov duab kos los ntawm e-mail thiab ces peb tus engineer yuav muab kev pab. Yog tsis muaj duab kos, qauv kuj OK. Catalog kuj OK.
Drawings thiab cov ntaub ntawv parameter
Stainless hlau txias dej haus ua thiab conveying saw yog tsuas yog siv nyob rau hauv ice cream ntau lawm kab kom tiav cov filling, ceev khov, ntim thiab conveying ntawm ice cream.
Nrog siab -cov ntaub ntawv zoo stainless hlau xws li o6Cr1gNi10(304) thiab 05Cr17Ni4Cu4Nb (630), kev ua haujlwm siab heev thiab cov cuab yeej siv tau zoo, cov khoom muaj cov yam ntxwv ntawm corrosion kuj, hnav tsis kam thiab kub tsis kam.

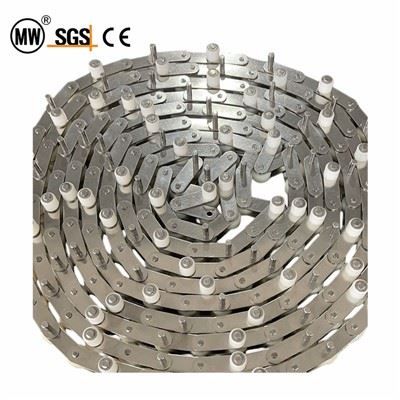

Conveyor chains rau kev tsim dej txias
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
t/T max |
Q min |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kg/m | |
| C2082SSA2F3 | 50.80 | 28.58 | 15.75 | 7.92 | 32.70 | 36.5 | 22.60 | 3.25 | 39/8767 | 2.8 |
| Chain No. | G | L1 | F | W | h4 | h5 | d3 |
| mm | mm | mm | mm | mm | mm | mm | |
| C2082SSA2F3 | 38.10 | 19.05 | 57.16 | 78.00 | 18.50 | 12.70 | 9.53 |
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
t/T max |
Q min |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kg/m | |
| C2082SSA2F4 | 50.80 | 28.58 | 15.75 | 7.92 | 32.70 | 36.5 | 22.60 | 3.25 | 39/8767 | 2.8 |
| Chain No. | G | L1 | F | W | h4 | h5 | d3 |
| mm | mm | mm | mm | mm | mm | mm | |
| C2082SSA2F4 | 38.10 | 19.05 | 57.16 | 78.00 | 18.70 | 8.50 | 12.70 |
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
t/T max |
Q min |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kg/m | |
| C2082SSSA2F1 | 50.80 | 28.58 | 15.75 | 7.92 | 32.70 | 36.5 | 22.60 | 3.25 | 39/8767 | 2.66 |
| Chain No. | P | G | L1 | C | F | L | d3 |
| mm | mm | mm | mm | mm | mm | mm | |
| C2082SSSA2F1 | 50.80 | 38.10 | 19.05 | 25.40 | 31.80 | 19.20 | 7.92 |
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Phaj qhov ntev |
Daim ntawv txuas qhov ntev |
Tensile zog |
||||||
| P | d1 max |
b1 min |
d2 max |
Lc max |
h2 max |
t/T max |
h4 | d5 | d6 | G | L | L3 | Q min |
|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | |
| P70F2SS | 70.00 | 30.00 | 15.75 | 11.98 | 39.9 | 28.0 | 3.1 | 20.0 | 12.0 | 9.2 | 50.0 | 25.5 | 7.0 | 22.5/5058 |
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Phaj qhov ntev |
Daim ntawv txuas qhov ntev |
Tensile zog |
|||||
| P | d1 max |
h1 min |
d2 max |
L max |
Lc max |
L3 | h2 max |
t/T max |
d3 | d4 | L4 max |
Q min |
|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | |
| P50F10SS | 50.00 | 25.00 | 18.00 | 7.00 | 56.2 | 35.7 | 25.5 | 20.0 | 3.0 | 6.00 | 12.0 | 10.0 | 25.0/5620 |
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Tensile zog |
Qhov hnyav rau meter |
|||
| P | d1 max |
b1 min |
d2 max |
d3 max |
L max |
Lc max |
L3 | h2 max |
t/T max |
Q min |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kg/m | |
| P100F135SS-D3 | 100.00 | 30.00 | 18.20 | 10.00 | 12.00 | 61.6 | 68.0 | 29.0 | 25.0 | 3.0 | 30/6744 | 2.8 |
FAQ
Q: Vim li cas cov saw hlau no tsim nyog rau kev cob qhia cov dej txias txias?
A: Los tiv thaiv- cov ntaub ntawv raw khoom tiv taus ntev ntev - kev sib cuag nrog dej qab zib thiab tshuaj ntxuav.
Q: Cov saw hlau puas puas tuaj yeem ntim cov ntim thaum thauj?
A: Polished du nto tiv thaiv lub raj mis thiab cov kaus poom hlau.
Q: Yog tias koj tsis tuaj yeem pom cov khoom ntawm peb lub vev xaib, koj yuav ua li cas ntxiv?
A: Thov xa peb cov lus nug nrog cov khoom duab thiab kos duab los ntawm email lossis lwm txoj hauv kev thiab peb yuav kuaj.
Q: Koj lub sijhawm xa khoom thiab xa khoom ntev npaum li cas?
A: 1.Sample Lead-times: feem ntau 10 hnub ua haujlwm.
2.Production Lead-times: 20-40 hnub ua haujlwm tom qab tau txais koj cov nyiaj tso cia.
