Hangzhou Dej hiav txwv kev lag luam Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm cov saw hlau rau cov tshuab ntxhua khaub ncaws hauv Suav teb. Txais tos rau cov lag luam wholesale bulk check industrial chains thiab fais fab kis qhov chaw ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Hangzhou Ocean Industry Co., Ltd. yog cov chaw tsim khoom thiab feem ntau ntawm peb cov khoom raug xa tawm mus rau Tebchaws Europe txij li xyoo 2005.
Peb cov kev txuas tshwj xeeb thiab cov saw hlau ua liaj ua teb haum rau txhua qhov kev ua haujlwm hnyav. Lawv yog ua los ntawm cov hlau resistant alloysteel nrog anti-corrosioncoating thiab yog sib xws nrog kev cai K, F, CA attachments rau sau, tsheb laij teb thiab balers.High tensile zog rau lub neej kev pab cuam ntev, saj zawg zog OEM & ODM rau ntiaj teb no ua liaj ua teb machinery wholesalers.
Parameter
Feem ntau ntawm peb cov neeg siv khoom OEM xa peb daim duab thiab peb yuav tsim raws li lawv daim duab. Koj tuaj yeem xa peb cov duab kos los ntawm e-mail thiab ces peb tus engineer yuav muab kev pab. Yog tsis muaj duab kos, qauv kuj OK. Catalog kuj OK.

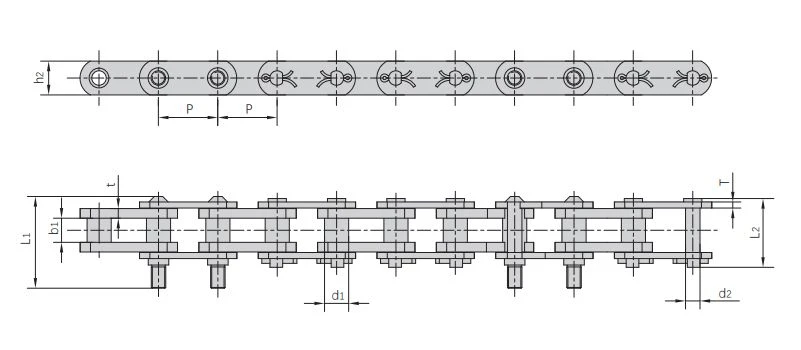

Drawings thiab cov ntaub ntawv parameter
Cov saw hlau ntawm cov thee ntxhua khaub ncaws feem ntau yog siv los ntxuav thiab tshuaj xyuas cov ntaub ntawv ntxhib hauv mines thiab thee yards, uas yuav tsum tau hnav tsis kam.
Los ntawm cov qauv kev tsim kho kom zoo nkauj thiab tshwj xeeb nto hardening tshuab, kev pab cuam lub neej ntawm cov saw yog qhov tseem ceeb ntev.
Conveyor chains rau coal washer
| Cov saw Tsis muaj. |
Suab | Bush txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Phaj qhov tob |
Phaj tuab |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L1 max |
L2 max |
h2 max |
t/T max |
Q min |
Q0 min |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kN kev | kg/m | |
| *P78 | 78.1 | 31.75 | 34.50 | 19.05 | 128.5 | 90.5 | 44.5 | 9.6 | 140.0/31818 | 166.88 | 14.09 |
| P78F1 | 78.1 | 31.75 | 31.75 | 19.05 | 122.0 | 90.5 | 44.5 | 12.7/8.0 | 140.0/31818 | 166.88 | 14.22 |
| *P78F2 | 78.1 | 31.75 | 31.75 | 19.05 | 129.0 | 90.5 | 44.5 | 12.7/8.0 | 140.0/31818 | 166.88 | 14.59 |
| *P78F3 | 78.1 | 31.75 | 31.25 | 19.05 | 124.0 | 90.5 | 44.5 | 12.7/8.0 | 140.0/31818 | 166.88 | 14.60 |
| #P78F5 | 78.1 | 31.75 | 34.50 | 19.05 | 124.0 | 91.0 | 44.5 | 9.7 | 140.0/81818 | 166.88 | 14.75 |
| #P78F6 | 78.1 | 31.75 | 32.00 | 20.70 | 127.0 | 93.0 | 46.0 | 10.0 | 140.0/31818 | 166.88 | 15.40 |
| * Txuas txuas nrog cov khoom ntev cotter #Txuas txuas nrog T tus pin |
|||||||||||
FAQ
Q: Dab tsi hnyav ib puag ncig tuaj yeem ua rau coal washer conveyor chains hloov mus rau?
A: Ntev-lub sij hawm sib cuag nrog cov thee slurry, dej av nkos thiab cov pob zeb hauv av.
Q: Yuav ua li cas kom tsis txhob slime jamming saw txav pob qij txha?
A: Broad clearance design zoo tso tawm cov coal slime txiav.
Q: Yog tias koj tsis tuaj yeem pom cov khoom ntawm peb lub vev xaib, koj yuav ua li cas ntxiv?
A: Thov xa peb cov lus nug nrog cov khoom duab thiab kos duab los ntawm email lossis lwm txoj hauv kev thiab peb yuav kuaj.
Q: Koj lub sijhawm xa khoom thiab xa khoom ntev npaum li cas?
A: 1.Sample Lead-times: feem ntau 10 hnub ua haujlwm.
2.Production Lead-times: 20-40 hnub ua haujlwm tom qab tau txais koj cov nyiaj tso cia.
Cim npe nrov: Tuam Tshoj conveyor chains rau thee washer, Tuam Tshoj conveyor chains rau thee washer manufacturers, lwm tus neeg, Hoobkas
