Khoom Description
Feem ntau ntawm peb cov neeg siv khoom OEM xa peb daim duab thiab peb yuav tsim raws li lawv daim duab. Koj tuaj yeem xa peb cov duab kos los ntawm e-mail thiab ces peb tus engineer yuav muab kev pab. Yog tsis muaj duab kos, qauv kuj OK. Catalog kuj OK.

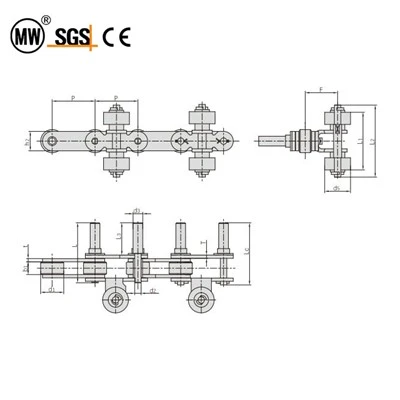

Drawings thiab cov ntaub ntawv parameter
Cov saw hlau loj ntawm cov menyuam saw rau kev thauj mus los ua raws li ISO, ASME / ANSI DIN, JIS thiab lwm yam qauv, feem ntau suav nrog A series ncaj saw cov menyuam saw, B series ncaj cov menyuam saw, luv pitch conveyor saw nrog accessories, ob lub suab conveyor saw, ob lub suab conveyor saw nrog accessories, thiab lwm yam.
Cov khoom siv ntawm cov hlua khi rau kev thauj mus los yog tsim los ntawm cov qauv sib txawv raws li kev siv cov kev xav tau, uas muaj cov yam ntxwv ntawm universality thiab ntau haiv neeg, ntawm cov khoom siv xws li kab rov tav dabtsi yog khoov txuas phaj, ntsug txuas phaj nrog qhov thiab lengthened pin ncej yog dav siv.
Cov khoom siv dav siv hauv cov saw conveyors thiab lwm yam khoom siv thauj khoom xa hluav taws xob thiab cov khoom siv.
Cov menyuam chains nrog ncaj sab phaj (A series)
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Hloov suab |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
||
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
Pt | Q min |
Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kN kev | kg/m | ||
| *C35-1 | 9.525 | 5.08 | 4.77 | 3.58 | 13.3 | 14.3 | 9.00 | 1.30 | - | 7.9/1795 | 10.8 | 0.41 | |
| C08A-1 | C40-1 | 12.700 | 7.95 | 7.85 | 3.96 | 16.6 | 18.8 | 12.00 | 1.50 | - | 14.1/3273 | 17.5 | 0.73 |
| C10A-1 | C50-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.7 | 23.3 | 15.09 | 2.03 | - | 22.2/5045 | 29.4 | 1.23 |
| C12A-1 | C60-1 | 19.050 | 11.91 | 12.57 | 5.94 | 25.9 | 28.3 | 18.00/18.20 | 2.42 | - | 31.8/7227 | 41.5 | 1.81/1.83 |
| C16A-1 | C80-1 | 25.400 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24.00 | 3.25 | - | 56.7/12886 | 69.4 | 3.09 |
| C20A-1 | C100-1 | 31.750 | 19.05 | 18.90 | 9.53 | 40.4 | 44.7 | 30.00 | 4.00 | - | 88.5/20114 | 109.2 | 4.56 |
| C24A-1 | C120-1 | 38.100 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.70 | 4.80 | - | 127.0/28864 | 156.3 | 6.86 |
| C28A-1 | C140-1 | 44.450 | 25.40 | 25.22 | 12.70 | 54.4 | 59.0 | 41.00 | 5.60 | - | 172.4/39182 | 212.0 | 8.49 |
| C32A-1 | C160-1 | 50.800 | 28.58 | 31.55 | 14.27 | 64.8 | 69.6 | 47.80 | 6.40 | - | 226.8/51545 | 278.9 | 11.50 |
| C08A-2 | C40-2 | 12.700 | 7.95 | 7.85 | 3.96 | 31.0 | 33.2 | 12.00 | 1.50 | 14.38 | 28.2/6409 | 35.9 | 1.43 |
| C10A-2 | C50-2 | 15.875 | 10.16 | 9.40 | 5.08 | 38.9 | 41.4 | 15.09 | 2.03 | 18.11 | 44.4/10091 | 58.1 | 2.42 |
| C12A-2 | C60-2 | 19.050 | 11.91 | 12.57 | 5.94 | 48.8 | 51.1 | 18.00/18.2 | 2.42 | 22.78 | 63.6/14455 | 82.1 | 3.58/3.62 |
| C16A-2 | C80-2 | 25.400 | 15.88 | 15.75 | 7.92 | 62.7 | 65.8 | 24.00 | 3.25 | 29.29 | 113.4/25773 | 141.8 | 6.12 |
| C20A-2 | C100-2 | 31.750 | 19.05 | 18.90 | 9.53 | 76.4 | 80.5 | 30.00 | 4.00 | 35.76 | 177.0/40227 | 219.4 | 9.08 |
| C24A-2 | C120-2 | 38.100 | 22.23 | 25.22 | 11.10 | 95.8 | 99.7 | 35.70 | 4.80 | 45.44 | 254.0/57727 | 314.9 | 13.60 |
| C28A-2 | C140-2 | 44.450 | 25.40 | 25.22 | 12.70 | 103.3 | 107.9 | 41.00 | 5.60 | 48.87 | 344.8/78364 | 427.5 | 16.86 |
| C32A-2 | C160-2 | 50.800 | 28.58 | 31.55 | 14.27 | 123.3 | 128.1 | 47.80 | 6.40 | 58.55 | 453.6/103091 | 562.4 | 22.90 |
| C08A-3 | C40-3 | 12.700 | 7.95 | 7.85 | 3.96 | 45.4 | 47.6 | 12.00 | 1.50 | 14.38 | 42.3/9614 | 50.0 | 2.14 |
| C10A-3 | C50-3 | 15.875 | 10.16 | 9.40 | 5.08 | 57.0 | 59.5 | 15.09 | 2.03 | 18.11 | 66.6/15136 | 77.8 | 3.62 |
| C12A-3 | C60-3 | 19.050 | 11.91 | 12.57 | 5.94 | 71.5 | 73.9 | 18.00/18.20 | 2.42 | 22.78 | 95.4/21682 | 111.1 | 5.36/5.41 |
| C16A-3 | C80-3 | 25.400 | 15.88 | 15.75 | 7.92 | 91.7 | 95.1 | 24.00 | 3.25 | 29.29 | 170.1/38659 | 198.4 | 9.10 |
| C20A-3 | C100-3 | 31.750 | 19.05 | 18.90 | 9.53 | 112.2 | 116.3 | 30.00 | 4.00 | 35.76 | 265.5/60341 | 309.6 | 13.60 |
| C24A-3 | C120-3 | 38.100 | 22.23 | 25.22 | 11.10 | 141.4 | 145.2 | 35.70 | 4.80 | 45.44 | 381.0/86591 | 437.2 | 20.43 |
| C28A-3 | C140-3 | 44.450 | 25.40 | 25.22 | 12.70 | 152.2 | 156.8 | 41.00 | 5.60 | 48.87 | 517.2/117545 | 593.3 | 25.23 |
| C32A-3 | C160-3 | 50.800 | 28.58 | 31.55 | 14.27 | 181.8 | 186.6 | 47.80 | 6.40 | 58.55 | 680.4/154636 | 780.6 | 34.19 |
| * Bush saw: d1 nyob rau hauv lub rooj qhia lub extemal txoj kab uas hla ntawm hav txwv yeem. | |||||||||||||
Cov menyuam chains nrog ncaj sab phaj (B series)
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab imer daim hlau |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Hloov suab |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
t/T max |
Pt | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kN kev | kg/m | |
| C08B-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | - | 18.0/4091 | 19.5 | 0.80 |
| C10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.70 | - | 22.4/5091 | 27.9 | 1.06 |
| C12B-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.5 | 25.2 | 16.0 | 1.85 | - | 29.0/6591 | 32.2 | 1.32 |
| C16B-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.1 | 39.1 | 21.0/24.0 | 4.15/3.10 | - | 60.0/13636 | 72.8 | 3.08/3.49 |
| C20B-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.3 | 45.0 | 26.4 | 4.50/3.50 | - | 95.0/21591 | 106.7 | 4.16 |
| C24B-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.4 | 57.8 | 33.2 | 6.00/4.80 | - | 160.0/36364 | 178.0 | 7.47 |
| C28B-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.1 | 69.5 | 36.7 | 7.50/6.00 | - | 200.0/45455 | 222.0 | 9.90 |
| C32B-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.0 | 71.0 | 42.0 | 7.00/6.00 | - | 250.0/56818 | 277.5 | 10.45 |
| C08B-2 | 12.700 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 1.60 | 13.92 | 32.0/7273 | 38.7 | 1.45 |
| C10B-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 14.7 | 1.70 | 16.59 | 44.5/10114 | 57.8 | 2.00 |
| C12B-2 | 19.050 | 12.07 | 11.68 | 5.72 | 42.0 | 44.7 | 16.0 | 1.85 | 19.46 | 57.8/13136 | 66.1 | 2.62 |
| C16B-2 | 25.400 | 15.88 | 17.02 | 8.28 | 68.0 | 71.0 | 21.0/24.0 | 4.15/3.10 | 31.88 | 106.0/24091 | 133.0 | 6.10/6.92 |
| C20B-2 | 31.750 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 26.4 | 4.50/3.50 | 36.45 | 170.0/38636 | 211.2 | 8.23 |
| C24B-2 | 38.100 | 25.40 | 25.40 | 14.63 | 101.7 | 106.2 | 33.2 | 6.00/4.80 | 48.36 | 280.0/63636 | 319.2 | 14.77 |
| C28B-2 | 44.450 | 27.94 | 30.99 | 15.90 | 124.6 | 129.1 | 36.7 | 7.50/6.00 | 59.56 | 360.0/81818 | 406.8 | 19.82 |
| C32B-2 | 50.800 | 29.21 | 30.99 | 17.81 | 124.6 | 129.6 | 42.0 | 7.00/6.00 | 58.55 | 450.0/102273 | 508.5 | 20.94 |
| C08B-3 | 12.700 | 8.51 | 7.75 | 4.45 | 45.1 | 46.1 | 11.8 | 1.60 | 13.92 | 47.5/10795 | 57.8 | 2.10 |
| C10B-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 54.1 | 14.7 | 1.70 | 16.59 | 66.7/15159 | 84.5 | 2.87 |
| C12B-3 | 19.050 | 12.07 | 11.68 | 5.72 | 61.5 | 64.2 | 16.0 | 1.85 | 19.46 | 86.7/19705 | 101.8 | 3.89 |
| C16B-3 | 25.400 | 15.88 | 17.02 | 8.28 | 99.8 | 102.9 | 21.0/24.0 | 4.15/3.10 | 31.88 | 160.0/36364 | 203.7 | 9.12/10.34 |
| C20B-3 | 31.750 | 19.05 | 19.56 | 10.19 | 114.2 | 117.9 | 26.4 | 4.50/3.50 | 36.45 | 250.0/56818 | 290.0 | 11.34 |
| C24B-3 | 38.100 | 25.40 | 25.40 | 14.63 | 150.1 | 154.6 | 33.2 | 6.00/4.80 | 48.36 | 425.0/96591 | 493.0 | 22.10 |
| C28B-3 | 44.450 | 27.94 | 30.99 | 15.90 | 184.2 | 188.7 | 36.7 | 7.50/6.00 | 59.56 | 530.0/120454 | 609.5 | 29.64 |
| C32B-3 | 50.800 | 29.21 | 30.99 | 17.81 | 183.2 | 188.2 | 42.0 | 7.00/6.00 | 58.55 | 670.0/152273 | 770.5 | 31.27 |
Ob chav pitch conveyor chains
| ISO Chain No. |
ANSI Chain No. |
Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
Q min |
Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kN kev | kg/m | ||
| C208A C208AL |
C2040 C2042 |
25.40 | 7.95 15.88 |
7.85 | 3.96 | 16.6 | 17.8 | 12.0 | 1.50 | 14.1/3205 | 16.7 | 0.50 0.84 |
| C208 AW C208 HLB |
C2040H C2042H |
25.40 | 7.95 15.88 |
7.85 | 3.96 | 18.8 | 19.9 | 12.0 | 2.03 | 14.1/3205 | 17.2 | 0.65 1.00 |
| C208B C208BL |
25.40 | 8.51 15.88 |
7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | 18.0/4091 | 19.4 | 0.55 0.89 |
|
| C210A C210 AL |
C2050 C2052 |
31.75 | 10.16 19.05 |
9.40 | 5.08 | 20.7 | 22.2 | 15.0 | 2.03 | 22.2/5045 | 28.1 | 0.78 1.27 |
| C210B C210 BL |
31.75 | 10.16 19.05 |
9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.70 | 22.4/5036 | 24.6 | 0.75 1.21 |
|
| C212A C212 UAS |
C2060 C2062 |
38.10 | 11.91 22.23 |
12.57 | 5.94 | 25.9 | 27.7 | 18.0 | 2.42 | 31.8/7227 | 36.8 | 1.12 1.61 |
| C212 AW C212 HLB |
C2060H C2062H |
38.10 | 11.91 22.23 |
12.57 | 5.94 | 29.2 | 31.6 | 18.0 | 3.25 | 31.8/7227 | 41.6 | 1.44 2.07 |
| C212B C212 BL |
38.10 | 12.07 22.23 |
11.68 | 5.72 | 22.5 | 24.2 | 16.0 | 1.85 | 29.0/6519 | 31.9 | 0.90 1.55 |
|
| C216A C216AL |
C2080 C2082 |
50.80 | 15.88 28.58 |
15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | 56.7/12886 | 65.7 | 2.08 3.12 |
| C216 AW C216 HLB |
C2080H C2082H |
50.80 | 15.88 28.58 |
15.75 | 7.92 | 36.2 | 39.4 | 24.0 | 4.00 | 56.7/12886 | 70.0 | 2.54 3.58 |
| C216B C216 BL |
50.80 | 15.88 28.58 |
17.02 | 8.28 | 36.1 | 39.1 | 21.0 | 4.15/3.10 | 60.0/13489 | 66.0 | 2.14 3.27 |
|
| C220A C220 AL |
C2100 C2102 |
63.50 | 19.05 39.67 |
18.90 | 9.53 | 40.4 | 44.7 | 30.0 | 4.00 | 88.5/20114 | 102.6 | 3.01 4.83 |
| C220 AW C220 HLB |
C2100H C2102H |
63.50 | 19.05 39.67 |
18.90 | 9.53 | 43.6 | 46.9 | 30.0 | 4.80 | 88.5/20114 | 112.4 | 3.56 5.38 |
| C220B C220 BL |
63.50 | 19.05 39.67 |
19.56 | 10.19 | 41.3 | 45.0 | 26.4 | 4.50/3.50 | 95.0/21357 | 104.5 | 2.93 5.01 |
|
| C224A C224AL |
C2120 C2122 |
76.20 | 22.23 44.45 |
25.22 | 11.10 | 50.3 | 54.3 | 35.7 | 4.80 | 127.0/28864 | 147.3 | 4.66 7.66 |
| C224 AW C224 HLB |
C2120H C2122H |
76.20 | 22.23 44.45 |
25.22 | 11.10 | 53.5 | 57.5 | 35.7 | 5.60 | 127.0/28864 | 160.9 | 5.26 8.26 |
| C224B C224 BL |
76.20 | 25.40 44.45 |
25.40 | 14.63 | 53.4 | 57.8 | 33.2 | 6.00/4.80 | 160.0/35969 | 176.0 | 5.17 7.88 |
|
| C232A C232 AW |
C2160 C2162 |
101.60 | 28.58 57.15 |
31.75 | 14.27 | 64.8 | 69.6 | 47.8 | 6.40 | 226.8/51545 | 278.9 | 8.15 13.00 |
| C232 AW C232 HLB |
C2160H C2162H |
101.60 | 28.58 57.15 |
31.75 | 14.27 | 68 | 73.0 | 47.8 | 7.20 | 226.8/51545 | 285.8 | 9.06 13.84 |
Ob chav pitch conveyor chains nrog txuas ntxiv pins
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kN kev | kg/m | |
| 208 AWV 17 | 25.40 | 7.95 | 4.00 | 3.96 | 12.75 | 15.00 | 12.00 | 1.50 | 13.80/3102 | 15.2 | 0.40 |
| 208 AWV 18 | 25.40 | 7.95 | 5.10 | 3.96 | 13.76 | 16.00 | 12.00 | 1.50 | 13.80/3102 | 15.2 | 0.38 |
| 208 AWV 45 | 25.40 | 8.51 | 47.64 | 4.45 | 57.00 | 58.50 | 11.80 | 1.60 | 17.80/4001 | 19.6 | 1.15 |
| C208BF3 | 25.40 | 8.51 | 7.95 | 4.45 | 16.70 | - | 11.80 | 1.50 | 10.00/22480 | 11.5 | 0.61 |
| C2050F12 | 31.75 | 10.16 | 9.52 | 5.08 | 20.20 | 21.70 | 15.00 | 2.03 | 18.53/4165 | 20.0 | 1.05 |
| C2052F51 | 31.75 | 19.05 | 9.40 | 5.08 | 20.70 | - | 15.00 | 2.03 | 21.80/4901 | 24.0 | 0.81 |
| 2060F75 | 38.10 | 11.91 | 16.07 | 5.94 | 29.50 | 31.90 | 18.00 | 2.42 | 31.10/6991 | 34.2 | 1.11 |
| 212 BHF 1 | 38.10 | 12.07 | 11.68 | 5.94 | 25.20 | 28.00 | 40.80 | 2.42 | 31.80/7149 | 36.6 | 2.73 |
| C2060F28 | 38.10 | 11.91 | 12.57 | 5.72 | 25.90 | 27.70 | 20.00 | 2.42 | 28.90/6496 | 32.4 | 1.40 |
| C2060F75 | 38.10 | 11.91 | 16.07 | 5.94 | 29.50 | 31.90 | 18.00 | 2.42 | 31.10/6991 | 34.2 | 1.32 |
| C2062F101 | 38.10 | 22.23 | 12.57 | 5.94 | 35.00 | - | 18.00 | 2.42 | 31.10/6991 | 34.2 | 1.98 |
| C2062F95 | 38.10 | 22.23 | 12.70 | 5.94 | 25.80 | 29.30 | 18.00 | 2.42 | 24.00/5395 | 26.4 | 2.20 |
| C212BF2 | 38.10 | 12.07 | 11.68 | 5.72 | 22.50 | 25.50 | 35.00 | 1.85 | 28.90/6496 | 33.3 | 1.88 |
| C212BF9 | 38.10 | 12.07 | 11.68 | 5.72 | 22.50 | 25.20 | 20.00 | 1.85 | 28.90/6496 | 33.3 | 1.10 |
Ob chav pitch conveyor chains nrog txuas ntxiv pins
Tsis yog -tus qauv ob lub suab conveyor chains
| Chain No. | Suab | Cov menyuam txoj kab uas hla |
Dav nruab nrab daim hlau sab hauv |
Pin txoj kab uas hla |
Pin ntev |
Sab hauv phaj qhov tob |
Phaj tuab |
Tensile zog |
Nruab nrab tensile zog |
Qhov hnyav rau meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf ib | kN kev | kg/m | |
| 2082 HHF 83 | 50.80 | 28.58 | 15.75 | 7.92 | 36.20 | 38.90 | 29.00 | 4.00 | 56.7/12746 | 62.4 | 3.90 |
| 216 IB 4 | 50.80 | 15.88 | 17.90 | 8.28 | 36.10 | 39.10 | 21.00 | 3.70 | 60.0/13488 | 66.0 | 1.80 |
| C2060H-50.8F1 | 50.80 | 11.91 | 12.57 | 5.94 | 29.20 | 31.00 | 17.20 | 3.25 | 31.1/6991 | 34.2 | 2.67 |
| C2080HF1 | 50.80 | 15.88 | 15.75 | 7.92 | 36.20 | 39.40 | 23.00 | 4.00 | 55.6/12499 | 61.1 | 2.49 |
| C2080HF51 | 50.80 | 18.00 | 32.00 | 7.92 | 54.00 | 57.50 | 24.00 | 4.00 | 55.6/12499 | 61.1 | 2.66 |
| C2080HF87 | 50.80 | 18.00 | 32.00 | 7.92 | 52.80 | 56.00 | 24.00 | 4.00 | 55.6/12499 | 61.2 | 2.67 |
| C2082HF94 | 50.80 | 25.40 | 15.75 | 7.92 | 36.20 | 39.40 | 23.00 | 4.00 | 60.0/13488 | 66.0 | 3.23 |
| C216BF1 | 50.80 | 15.88 | 17.02 | 8.28 | 36.10 | 39.10 | 20.00 | 4.00/3.00 | 60.0/13488 | 66.0 | 2.01 |
| 220 BF1 | 63.50 | 19.05 | 19.56 | 10.19 | 36.50 | 37.60 | 27.00 | 3.00 | 65.0/14612 | 74.7 | 1.81 |
| 220 BF3 | 63.50 | 19.05 | 19.56 | 10.19 | 42.30 | 43.40 | 26.40 | 4.50/4.00 | 56.7/12746 | 62.4 | 2.68 |
| C220AH-BF1 | 63.50 | 19.05 | 18.90 | 9.53 | 43.60 | 46.90 | 30.00 | 4.80 | 86.7/19490 | 95.5 | 3.74 |
| C224AHF2 | 76.20 | 27.20 | 25.22 | 11.10 | - | 57.50 | 35.70 | 5.60 | 124.6/280112 | 139.5 | 5.78 |
| C224 HLB 5 | 76.20 | 43.00 | 25.22 | 11.10 | 53.50 | - | 35.70 | 5.60 | 124.6/280112 | 142.6 | 7.94 |
| C232BF1 | 101.60 | 29.21 | 30.99 | 17.81 | 68.00 | 73.00 | 42.00 | 7.00 | 250.0/56200 | 275.0 | 7.85 |
| ISO Chain No. |
ANSI Chain No. |
P | b1 | d2 | L3 | L | Lc |
| mm | mm | mm | mm | mm | mm | ||
| C208A | C2040 | 25.40 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 |
| C208AL | C2042 | ||||||
| C210A | C2050 | 31.75 | 9.40 | 5.08 | 11.9 | 31.3 | 33.1 |
| C210 AL | C2052 | ||||||
| C212A | C2060 | 38.10 | 12.57 | 5.94 | 14.3 | 38.6 | 40.6 |
| C212 UAS | C2062 | ||||||
| C212 AW | C2060H | 38.10 | 12.57 | 5.94 | 14.3 | 42.0 | 43.8 |
| C212 HLB | C2062H | ||||||
| C216A | C2080 | 50.80 | 15.75 | 7.92 | 19.1 | 50.3 | 53.3 |
| C216AL | C2082 | ||||||
| C216 AW | C2080H | 50.80 | 15.75 | 7.92 | 19.1 | 53.5 | 55.0 |
| C216 HLB | C2082H | ||||||
| C220A | C2100 | 63.50 | 18.90 | 9.53 | 23.8 | 61.8 | 66.1 |
| C220 AL | C2102 | ||||||
| C220 AW | C2100H | 63.50 | 18.90 | 9.53 | 23.8 | 65.0 | 68.3 |
| C220 HLB | C2102H | ||||||
| C224 AW | C2120H | 76.20 | 25.22 | 11.10 | 28.6 | 79.6 | 83.6 |
| C224 HLB | C2122H | ||||||
| C232 AW | C2160H | 101.60 | 31.75 | 14.27 | 38.1 | 103.0 | 107.8 |
| C232 HLB | C2162H |
| Chain No. | P | b1 | L3 | L | d2 | d3 | d4 |
| mm | mm | mm | mm | mm | mm | mm | |
| 2040-D3F12 | 25.400 | 7.85 | 8.00 | 23.70 | 3.96 | 6.00 | - |
| 208B-D3F17 | 25.400 | 7.75 | 19.40 | 35.10 | 4.45 | 4.65 | 1.60 |
| C2040-D1F23 | 25.400 | 7.85 | 37.00 | 52.60 | 3.96 | 5.50 | - |
| C2040-D3F13 | 25.400 | 7.85 | 31.75 | 47.35 | 3.96 | 7.94 | - |
| C2040-D3F15 | 25.400 | 7.85 | 20.40 | 36.00 | 3.96 | 4.45 | 1.50 |
| C2042-D1F20 | 25.400 | 7.85 | 35.00 | 51.00 | 3.96 | 6.00 | - |
| C208B-D3F19 | 25.400 | 7.75 | 15.20 | 31.00 | 4.48 | 8.30 | - |
| 210B-D1F3 | 31.750 | 9.65 | 33.00 | 51.40 | 5.08 | 8.00 | - |
| C2052-D13F2 | 31.750 | 9.40 | 23.40 | 43.00 | 5.08 | 6.00 | - |
| C2052-D1F23 | 31.750 | 9.40 | 40.00 | 59.70 | 5.08 | 6.35 | - |
| C2052-D1F27 | 31.750 | 9.40 | 20.00 | 41.10 | 5.08 | 9.00 | - |
| C2052-D1F28 | 31.750 | 9.40 | 21.00 | 42.10 | 5.08 | 9.30 | - |
| C2052-D1F52 | 31.750 | 9.40 | 30.00 | 49.50 | 5.08 | 9.00 | - |
| C2052-D1F54 | 31.750 | 9.40 | 22.00 | 41.60 | 5.08 | 5.08 | 1.80 |
| C2052-D1F71 | 31.750 | 9.40 | 20.00 | 41.10 | 5.08 | 7.00 | - |
| C2052-D1F72 | 31.750 | 9.40 | 50.00 | 71.20 | 5.08 | 8.00 | - |
| C2052-D3F20 | 31.750 | 9.40 | 22.00 | 41.60 | 5.08 | 5.70 | - |
| C2052F56-D1SS | 31.750 | 9.00 | 25.70 | 49.90 | 5.08 | 5.55 | - |
| C2060H-D1F57 | 38.100 | 12.57 | 35.00 | 52.80 | 5.94 | 10.00 | - |
| C2060H-D3F44 | 38.100 | 12.57 | 25.00 | 55.50 | 5.94 | M8 | - |
| C2060SLR{1}}D3F55 | 38.100 | 12.57 | 14.30 | 40.50 | 5.94 | 5.94 | 2.00 |
| C2062-D1F32 | 38.100 | 12.57 | 18.50 | 43.00 | 5.94 | 9.00 | - |
| C2062-D1F40 | 38.100 | 12.57 | 30.00 | 54.60 | 5.94 | 8.00 | - |
| C2062-DIF54 | 38.100 | 12.57 | 25.00 | 49.40 | 5.94 | 7.95 | 2.50 |
| C2062-D3F31 | 38.100 | 12.57 | 35.00 | 59.50 | 5.94 | 10.00 | - |
| C2062H-D1F47 | 38.100 | 12.57 | 30.00 | 57.80 | 5.94 | 7.95 | 2.50 |
| C2062H-D1F58 | 38.100 | 12.57 | 29.20 | 57.00 | 5.94 | 9.80 | - |
| C2062H-D1F68 | 38.100 | 12.57 | 26.00 | 53.80 | 5.94 | 5.94 | 2.00 |
| C2062HF99 | 38.100 | 12.57 | 50.00 | 80.80 | 5.94 | 10.00 | - |
| C2062HNP-D1F59 | 38.100 | 12.57 | 22.20 | 50.20 | 5.94 | 12.70 | - |
| 216B-D1F4 | 50.800 | 17.02 | 20.00 | 54.10 | 8.28 | 12.00 | - |
| C2082-D1F21 | 50.800 | 15.75 | 24.50 | 55.60 | 7.92 | 12.00 | - |
| C2082-D1F8 | 50.800 | 15.75 | 30.00 | 61.20 | 7.92 | 8.50 | - |
| C2082H-D1F10 | 50.800 | 15.75 | 30.00 | 64.40 | 7.92 | 8.50 | - |
| C2082H-D1F12 | 50.800 | 15.75 | 20.00 | 54.20 | 7.92 | 9.00 | 3.20 |
| C2082H-D1F22 | 50.800 | 15.75 | 25.40 | 60.00 | 7.92 | 15.88 | - |
| C2102H-D3F5 | 63.500 | 18.90 | 37.00 | 78.50 | 9.53 | 9.53 | 2.50 |
| Chain No. | P | b1 | d2 | d3 | d4 | L3 | L |
| mm | mm | mm | mm | mm | mm | mm | |
| C2052F2 | 31.75 | 9.40 | 5.08 | 6.00 | 7.00 | 20.00 | 39.80 |
| C2052F14 | 31.75 | 9.40 | 5.08 | 6.00 | 7.00 | 21.00 | 40.40 |
| C2050GKF12 | 31.75 | 9.40 | 5.08 | 5.08 | 5.08 | 11.90 | 34.00 |
| C2050GKF13 | 31.75 | 9.40 | 5.08 | 5.20 | 10.00 | 35.00 | 54.60 |
| C2052-D5F26 | 31.75 | 9.40 | 5.08 | 6.35 | 8.76 | 19.90 | 39.50 |
| C2052-D5F27 | 31.75 | 9.40 | 5.08 | 6.35 | 7.11 | 19.70 | 39.00 |
| C2060H-D23 | 38.10 | 12.57 | 5.94 | 8.80 | 12.70 | 41.30 | 69.30 |
| C2060H-D24 | 38.10 | 12.57 | 5.94 | 7.95 | 12.70 | 44.80 | 65.60 |
| C2060H-D31 | 38.10 | 12.57 | 5.94 | 7.95 | 16.00 | 45.00 | 73.00 |
| C2060H-D5F4 | 38.10 | 12.57 | 5.94 | 7.95 | 12.70 | 50.00 | 77.80 |
| C2060HF9 | 38.10 | 12.57 | 5.94 | 7.95 | 12.70 | 41.30 | 69.30 |
| C2060HF10 | 38.10 | 12.57 | 5.94 | 7.70 | 14.30 | 41.30 | 69.30 |
| C2060HF75 | 38.10 | 12.57 | 5.94 | 6.00 | 8.00 | 27.50 | 55.50 |
| C2062-D38 | 38.10 | 12.57 | 5.94 | 5.94 | 11.10 | 24.20 | 48.60 |
| C2062-D39 | 38.10 | 12.57 | 5.94 | 5.94 | 13.30 | 32.20 | 56.60 |
| C2062H-D41 | 38.10 | 12.57 | 5.94 | 9.53 | 9.50 | 22.20 | 50.00 |
| C2062HGKF17-D5F1 | 38.10 | 12.57 | 5.94 | 7.95 | 13.30 | 32.20 | 60.20 |
| C212AHF3 | 38.10 | 12.57 | 5.94 | 8.08 | 10.00 | 35.00 | 63.00 |
| C212AHF7 | 38.10 | 12.57 | 5.94 | 5.94 | 12.70 | 41.20 | 69.20 |
| C212AHF8 | 38.10 | 12.57 | 5.94 | 8.00 | 10.00 | 35.00 | 63.00 |
| C212AHL-D4 | 38.10 | 12.57 | 5.94 | 5.94 | 8.00 | 25.00 | 53.00 |
| Chain No. | P | b1 | d2 | d4 | d5 | L3 | L1 | L4 | L2 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| C2052F1 | 31.75 | 9.4 | 5.08 | 7.0 | 11.0 | 30.0 | 49.8 | 20.0 | 39.8 |
| Chain No. | P | b1 | d2 | d3 | L3 | L |
| mm | mm | mm | mm | mm | mm | |
| C2052DF1 | 31.75 | 9.40 | 5.08 | 7.50 | 14.15 | 33.6 |
| C210AF4 | 31.75 | 9.40 | 5.08 | 11.00 | 34.00 | 53.7 |
| C2052-D4 | 31.75 | 9.40 | 5.08 | 6.00 | 32.40 | 52.0 |
| C2050-D5 | 31.75 | 9.40 | 5.08 | 8.00 | 40.00 | 59.7 |
| C212AHL-D4 | 38.10 | 12.57 | 5.94 | 8.00 | 25.00 | 53.0 |
| C2062-D6 | 38.10 | 12.57 | 5.94 | 12.00 | 25.00 | 49.7 |
| Chain No. | P | b1 | d2 | d3 | d4 | L3 | L1 | L4 | L2 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| C2050-D5F1 | 31.75 | 9.40 | 5.08 | 10.00 | 10.00 | 43.20 | 60.30 | 41.00 | 62.40 |
| Chain No. | P | b1 | L3 | d2 | d3 |
| mm | mm | mm | mm | mm | |
| C2050-D5F25 | 31.75 | 9.40 | 19.00 | 5.08 | 10.00 |
| C2050F44 | 31.75 | 9.40 | 19.00 | 5.08 | 9.75 |
| Chain No. | P | b1 | L3 | L4 | L | d2 | d3 | d5 |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| C2052-D1F29 | 31.75 | 9.40 | 33.00 | 3.00 | 55.00 | 5.08 | 9.00 | 13.00 |
| C2052-D3F24 | 31.75 | 9.40 | 33.00 | 3.00 | 55.00 | 5.08 | 9.00 | 13.00 |
| C2052-D3F55 | 31.75 | 9.40 | 34.00 | 4.00 | 56.00 | 5.08 | 7.00 | 10.00 |
| Chain No. | P | h1 | L3 | L4 | L | d2 | d3 | d4 | d5 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| C2052-D1F15 | 31.75 | 9.40 | 16.20 | 2.20 | 35.90 | 5.08 | 7.00 | - | 10.00 |
| C2052-PF1-D3F30 | 31.75 | 9.40 | 14.20 | 2.00 | 33.90 | 5.08 | 5.08 | - | 8.00 |
| C2062-D1F43 | 38.10 | 12.57 | 40.60 | 29.10 | 65.00 | 5.94 | M5 | - | 5.94 |
| C2062-D8 | 38.10 | 12.57 | 29.00 | 7.00 | 53.40 | 5.94 | 7.00 | - | 14.00 |
| C2062H-D1F45 | 38.10 | 12.57 | 27.70 | 6.00 | 55.60 | 5.94 | 7.90 | 2.00 | 12.00 |
| C2062H-D1F50 | 38.10 | 12.57 | 29.00 | 7.00 | 56.80 | 5.94 | 7.00 | - | 14.00 |
| C2062H-D1F58 | 38.10 | 12.57 | 29.20 | 12.20 | 57.00 | 5.94 | 9.00 | - | 12.00 |
| C2082HAA1F2-D3F2 | 50.80 | 15.75 | 61.50 | 6.00 | 96.50 | 7.92 | 12.00 | - | 15.00 |
| C2082H-D3F19 | 50.80 | 15.75 | 31.00 | 11.00 | 65.50 | 7.92 | 11.90 | - | 15.88 |
| C220AHSLR-D1F3 | 63.50 | 18.90 | 28.00 | 3.50 | 69.50 | 9.53 | 11.00 | - | 15.00 |
| Chain No. | P | b1 | L3 | L4 | L | d2 | d3 | d4 |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| C2050-D1F62 | 31.75 | 9.40 | 8.00 | 5.00 | 27.40 | 5.08 | 5.08 | 5.20 |
| C2050-D1F63 | 31.75 | 9.40 | 5.00 | 2.00 | 24.40 | 5.08 | 5.08 | 5.20 |
| C2050-D1F64 | 31.75 | 9.40 | 7.00 | 7.00 | 24.40 | 5.08 | 8.00 | - |
| C2060SLR-D3F56 | 38.10 | 12.57 | 18.20 | 15.00 | 44.50 | 5.94 | 5.94 | - |
Luv pitch conveyor chains nrog txuas ntxiv pins
| ISO Chain No. |
DIN Chain No. |
P | b1 | d2 | L3 | L | Lc |
| mm | mm | mm | mm | mm | mm | ||
| 35 | 06C | 9.525 | 4.77 | 3.58 | 9.5 | 20.8 | 21.6 |
| 40 | 08A | 12.700 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 |
| 50 | 10A | 15.875 | 9.40 | 5.08 | 11.9 | 31.3 | 33.1 |
| 60 | 12A | 19.050 | 12.57 | 5.94 | 14.3 | 38.6 | 40.6 |
| 80 | 16A | 25.400 | 15.75 | 7.92 | 19.1 | 50.3 | 53.3 |
| 100 | 20A | 31.750 | 18.90 | 9.53 | 23.8 | 61.8 | 66.1 |
| 120 | 24A | 38.100 | 25.22 | 11.10 | 28.6 | 76.4 | 80.4 |
| 140 | 28A | 44.450 | 25.22 | 12.70 | 33.3 | 84.8 | 89.4 |
| 160 | 32A | 50.800 | 31.55 | 14.27 | 38.1 | 99.6 | 104.4 |
| 08B | 08B | 12.700 | 7.75 | 4.45 | 9.5 | 25.1 | 26.6 |
| 10B | 10B | 15.875 | 9.65 | 5.08 | 11.9 | 30.1 | 31.5 |
| 12B | 12B | 19.050 | 11.68 | 5.72 | 14.3 | 35.4 | 37.1 |
| 16B | 16B | 25.400 | 17.02 | 8.28 | 19.1 | 53.0 | 54.3 |
| 20B | 20B | 31.750 | 19.56 | 10.19 | 41.0 | 79.9 | 83.6 |
| 24B | 24B | 38.100 | 25.40 | 14.63 | 50.7 | 101.4 | 105.8 |
| 28B | 28B | 44.450 | 30.99 | 15.90 | 61.9 | 124.0 | 128.4 |
| 32B | 32B | 50.800 | 30.99 | 17.81 | 64.8 | 126.8 | 131.8 |
FAQ
Q: Cov txiaj ntsig dab tsi ua rau cov menyuam yaus coj mus rau kev xa khoom?
A: Thick rollers txiav kev sib txhuam thiab txuas ntxiv tag nrho cov saw hlau ua haujlwm.
Q: Cov khoom siv sib txawv puas tuaj yeem ntsia tau rau ntawm cov saw no?
A: Ntau cov qauv txuas ntxiv muaj rau cov kev xav tau ntawm kev xa khoom.
Q: Yog tias koj tsis tuaj yeem pom cov khoom ntawm peb lub vev xaib, koj yuav ua li cas ntxiv?
A: Thov xa peb cov lus nug nrog cov khoom duab thiab kos duab los ntawm email lossis lwm txoj hauv kev thiab peb yuav kuaj.
Q: Koj cov nqe lus them nqi yog dab tsi?
A: T / T 30% tso nyiaj, thiab 70% ua ntej xa khoom.
Cim npe nrov: Tuam Tshoj conveying roller chains manufacturers, lwm tus neeg, Hoobkas
